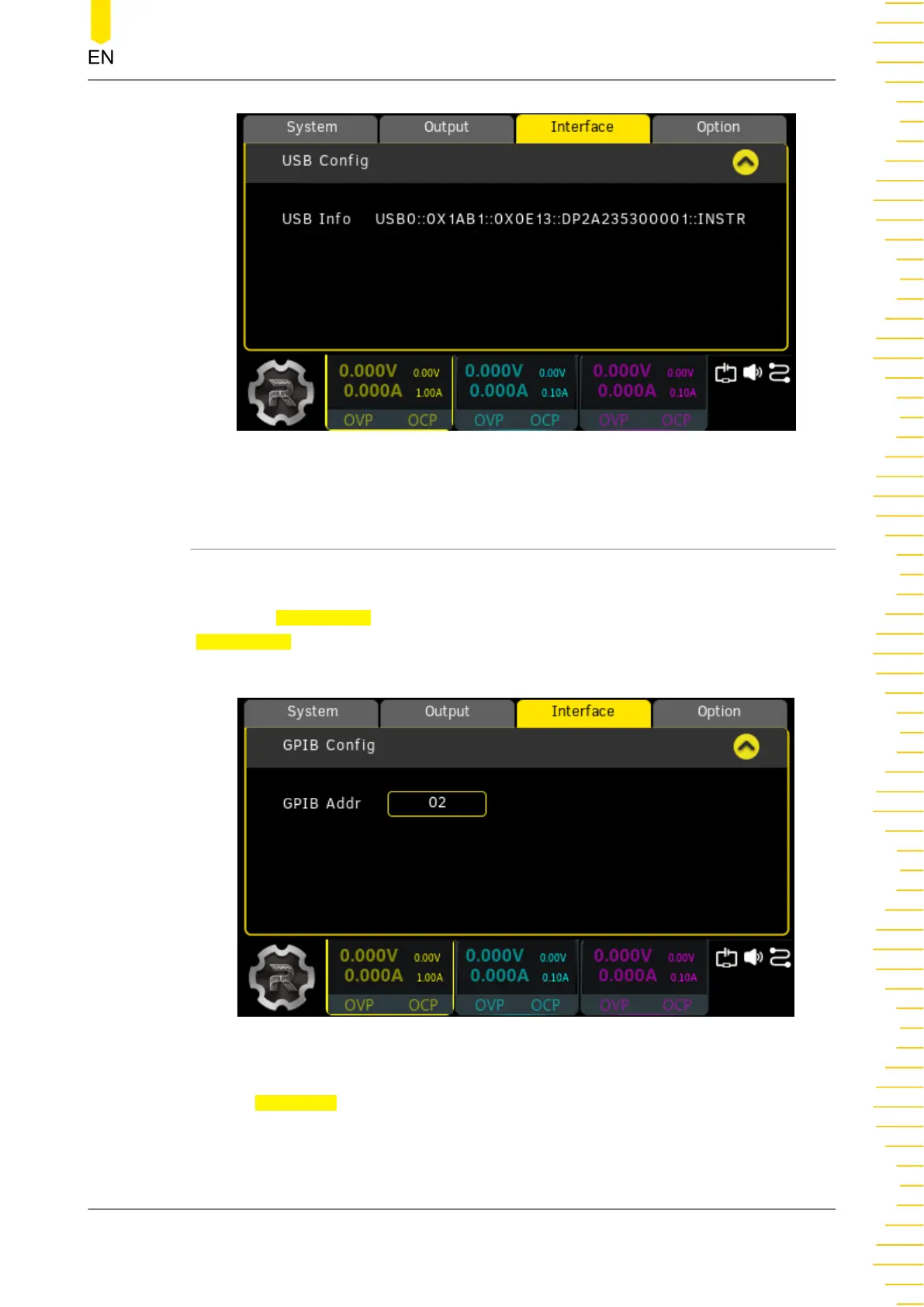

Figure 13.12 USB Configuration Interface

13.3.5 GPIB Configuration

Before using the GPIB interface, please first install the optional GPIB interface and

then use a GPIB cable to connect the instrument and PC. In the Interface Settings

menu, tap GPIB Config to access the menu as shown in the figure below. You can tap

GPIB Config again to collapse the current menu to revert to the Interface Settings

menu.

Figure 13.13 GPIB Configuration Interface

Tap the GPIB Addr input field and enter the desired GPIB address using the front-

panel parameter input area or pop-up virtual keypad. The value can be any integer

ranging from 0 to 30, and the default is 2. This setting is non-volatile; it will not be

changed by factory reset.
