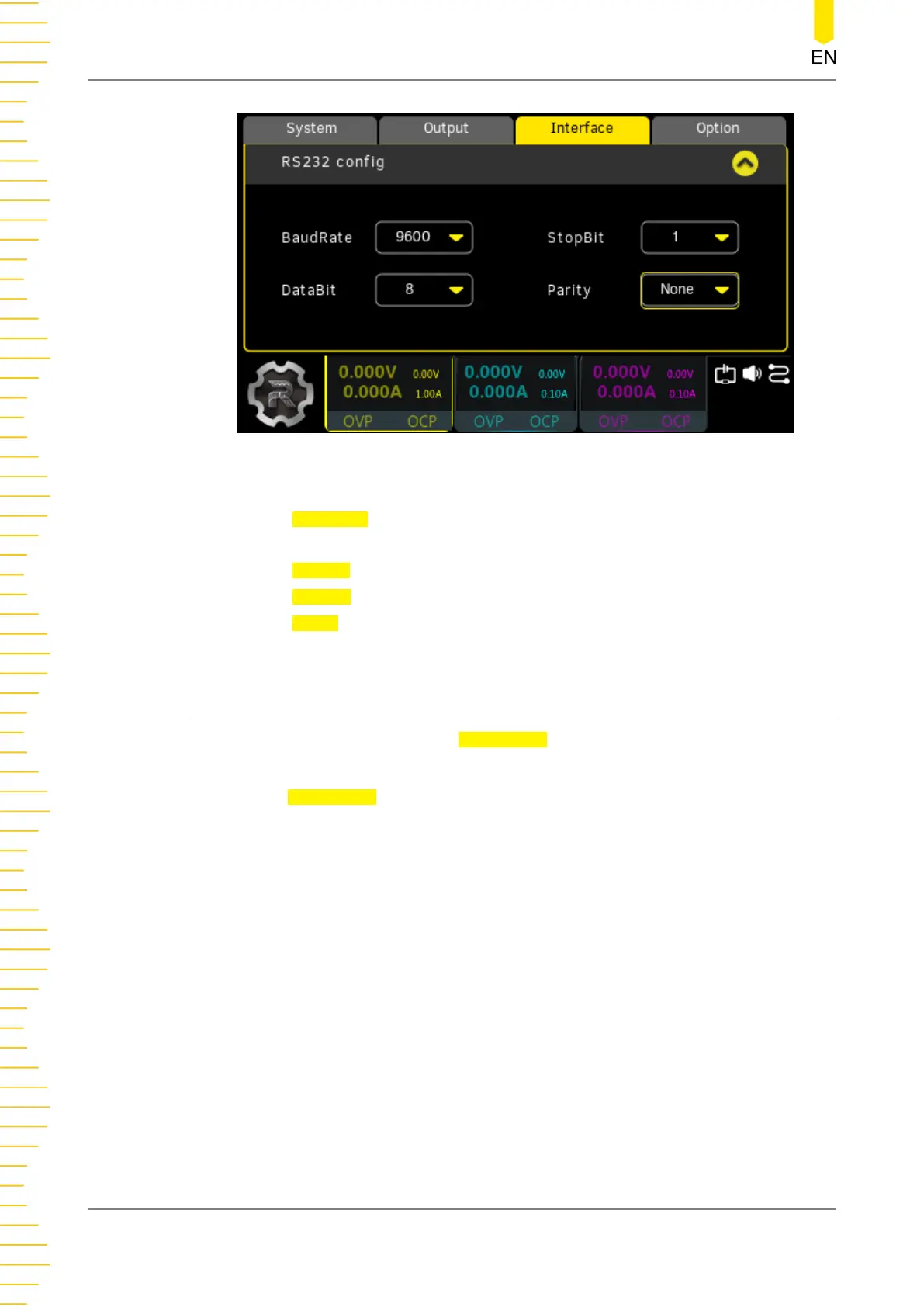

Figure 13.11 RS232 Configuration Interface

• Tap the BaudRate drop-down button to select the desired baud rate from 9600,

19200, 38400, 57600, and 115200. The unit is Baud.

• Tap the

StopBit drop-down button to select 1 or 2.

• Tap the DataBit drop-down button to select 7 or 8.

• Tap the

Parity drop-down button to select the parity check from “None”,

“Odd”, and “Even”.

13.3.4 USB Configuration

In the Interface Settings menu, tap USB Config to enter the interface as shown in the

figure below. The interface displays the USB information.

You can tap USB Config again to collapse the current menu to revert to the Interface

Settings menu.
