To Next Page

To Previous Page

Long pressing the key can lock the touch screen, for which you cannot configure

the instrument using the touch screen. Long pressing the key again can unlock the

touch screen.

6. Back Key

Press the key to delete the character currently before the cursor.

When the instrument is in remote control, pressing this key can return to local

(front panel) operation.

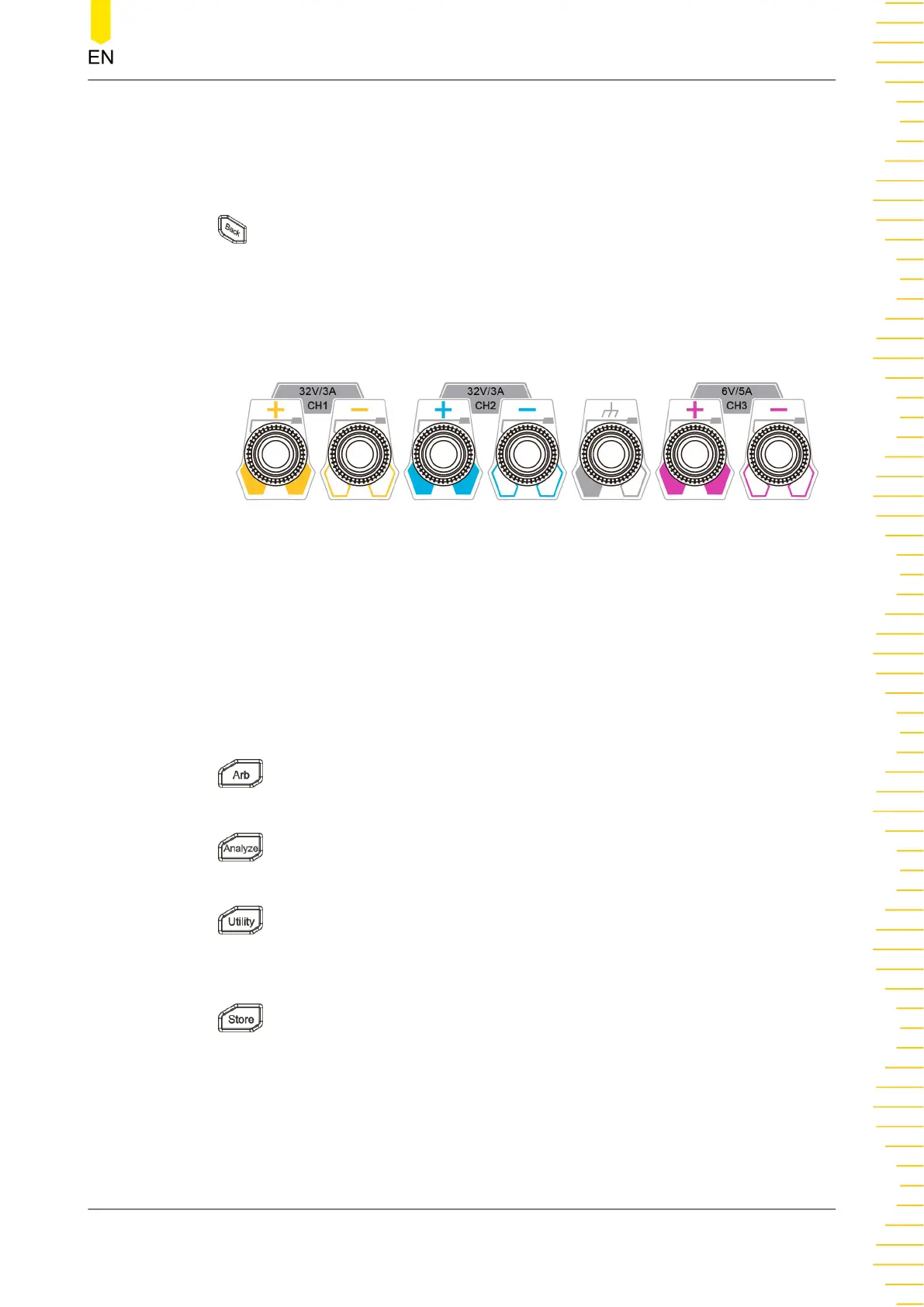

7. Output terminals

Figure 4.4 DP2000 Output Terminals

- Channel output terminals: used to output voltage and current of the channel.

Please refer to

Document Overview

for available output voltage/current range

of the model.

- Earth ground terminal: be connected to the instrument chassis and earth

ground (the ground terminal of the power cord) and is grounded.

8. Function Menu

Press this key to enter the Arb interface, in which you can set Arb

parameters, and enable/disable the Arb function.

Press this key to set the Analyzer interface, in which you can select the

object to analyze and turn on/off the Logger.

Press this key to enter the Utility setting interface, in which you can set

parameters related to remote interface, system, outputs, and options. Besides, you

can also set the display and Sense.

Press this key to enter the Store and Recall interface, in which you can save,

read, delete, copy, or paste files. The file types available for storage include state

file, log file, Arb file, calibration file, option installation verification file, and bitmap

file. You are allowed to store a file to internal or external memory and also recall

the file from internal or external memory.

9. USB HOST Port

Quick Start

DP2000 User Guide
