Select ON or OFF to activate the remote sensing for CH1/CH2/CH3. When the

selected channel is “ON”, the Sense function of the channel is enabled; when the

selected channel is “OFF”, the Sense function of the channel is disabled.

TIP

• When the output current is high, keep the load leads as short as possible and twist them

for better outputs.

• It is recommended to use the twisted Sense wire-pair. Do not bundle them together with

the load wires.

13.2 Output Settings

The Output Settings interface allows you to set the track mode, output off status, safe

mode, sampling mode, current sampling rate, and channel connection status.

Press > Output or tap > Utility > Output to enter the interface as shown

in the figure below.

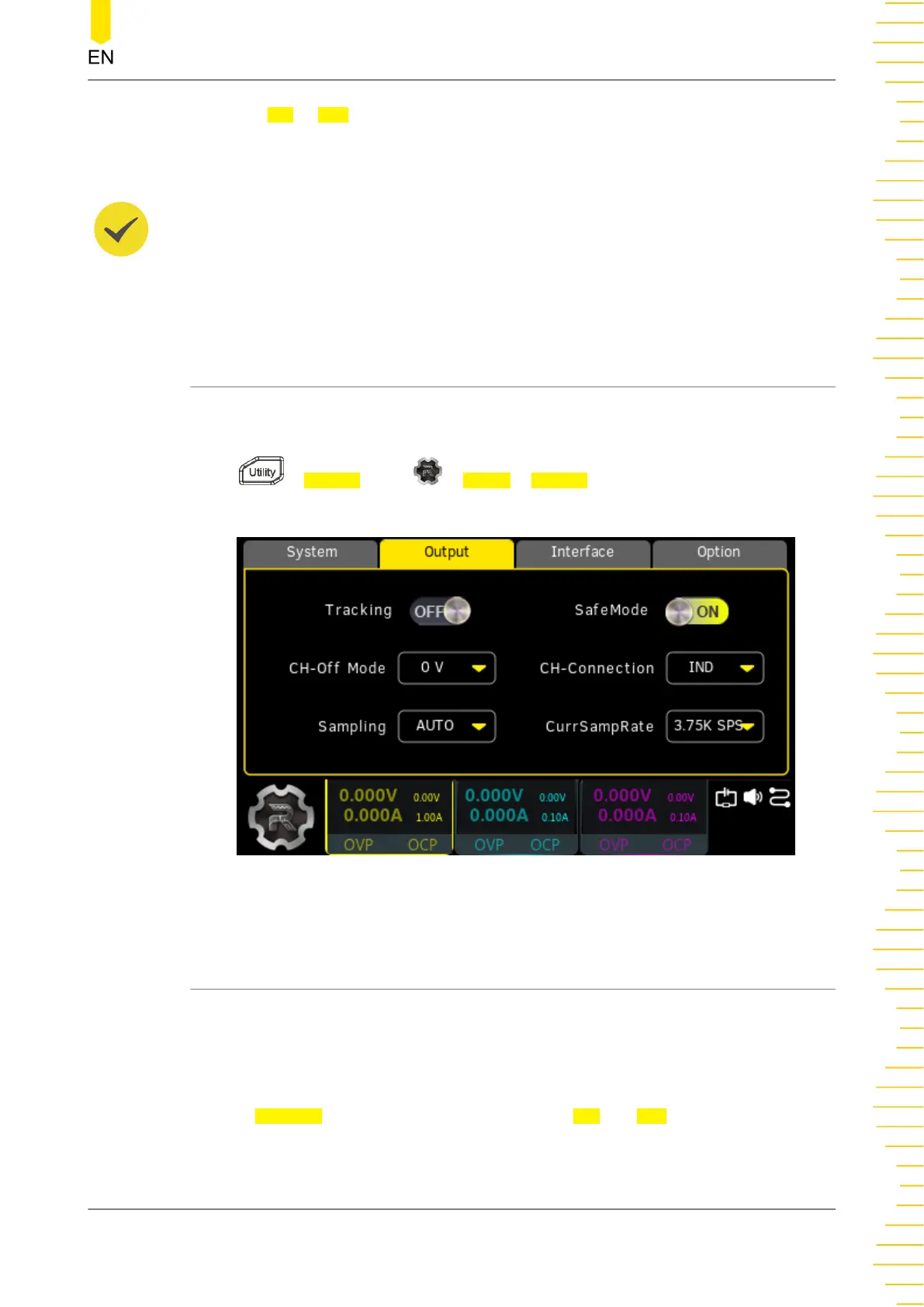

Figure 13.6 Output Settings Interface

13.2.1 Track Mode

The tracking function is usually used to provide symmetrical voltages needed by

operational amplifiers and other circuits. For this series power supply, the tracking

function is available for CH1 and CH2. You can enable or disable the track mode for

those two channels.

Tap the Tracking on/off button to toggle between ON and OFF to enable or disable

the track mode.
