Rigol DP2000 Series User Manual

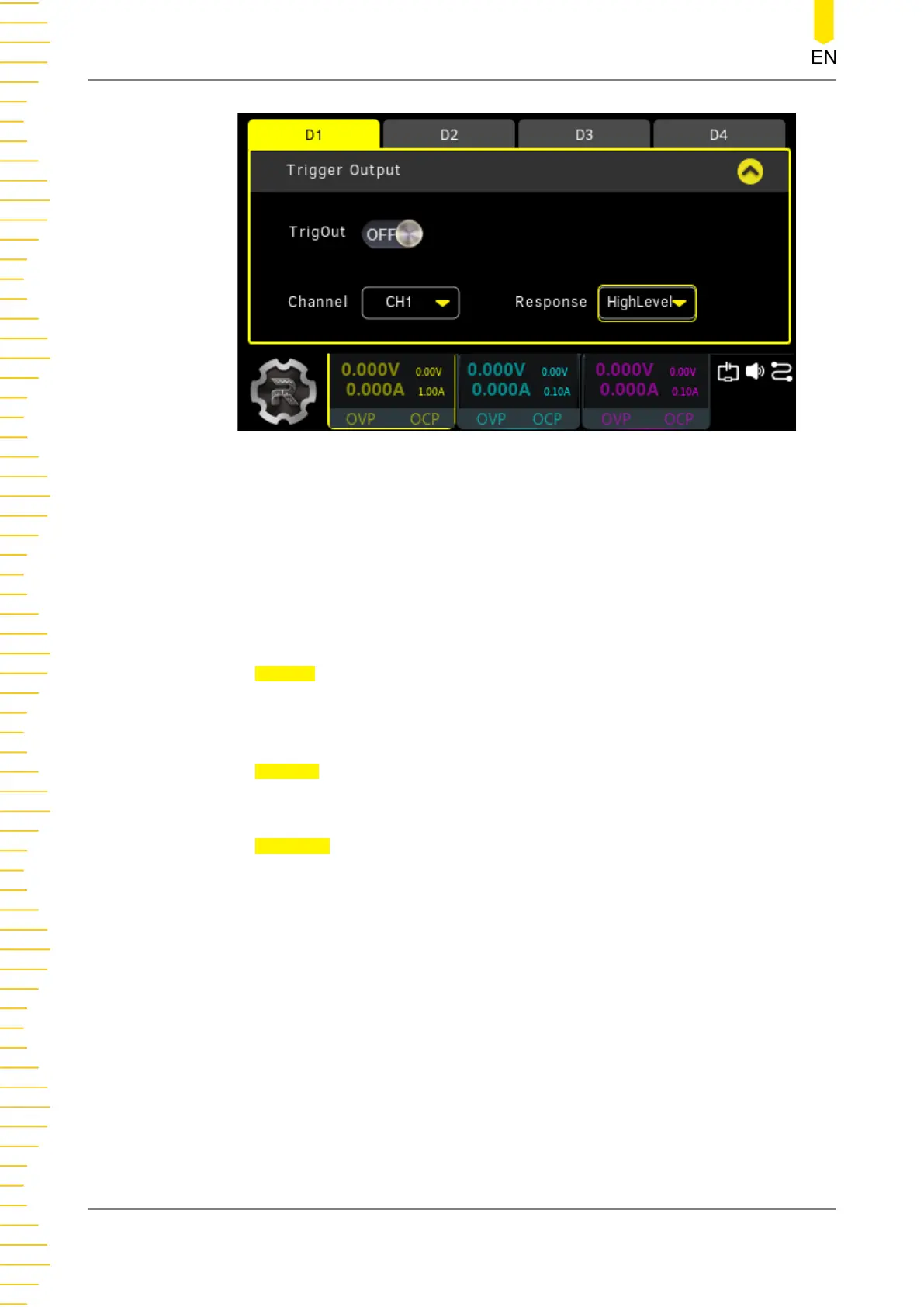

Figure 11.4 Trigger Output Setting Interface
Data Line
Select a data line (D1, D2, D3, or D4) you wish to configure. The data line label is lit
after selected. You can configure the trigger settings for the four data lines
respectively.
Trigger Output On/Off
Tap the
TrigOut on/off button to enable or disable the respective trigger output
settings for the selected data line.
Control Source
Tap the
Channel drop-down button to select CH1, Ch2, or CH3 as the control source.
Output Response
Tap the Response drop-down button to set the trigger response type to
“HighLevel” or “LowLevel”.
• High Level: The selected data line outputs 3.3 V high level when the control
source is turned on.
• Low Level: The selected data line outputs low level signal (CMOS level) when the
control source is turned on.
Trigger
