9
Arb Function
The Arbitrary function of DP2000 series power supply enables you to generate freely
programmable waveforms which can be reproduced within the limit settings for
voltage and current. You can set the repetition cycle for the arbitrary waveform as
well as the output voltage/current and time for each group of data. Moreover, the
instrument has multiple built-in waveform templates for you to select and edit. You
can set your waveform parameters based on those templates. The instrument will
output waveforms according to the parameters set.
Press
or tap > Arb to enter the Arb main interface, as shown in the figure
below. Then tap the channel selection drop-down button at the lower-left corner of
the interface to select a channel to control. The menu keys and their functions are as
follows:
• Run/Stop:
Turn on or off the arbitrary waveform generator.
• Setting:
Open the Arb settings interface to set the output properties for the arbitrary
waveform.
• Import:
Read Arb file.
• Export:
Save the Arb parameters edited.
• Edit:
Access the Arb editor to edit the data.

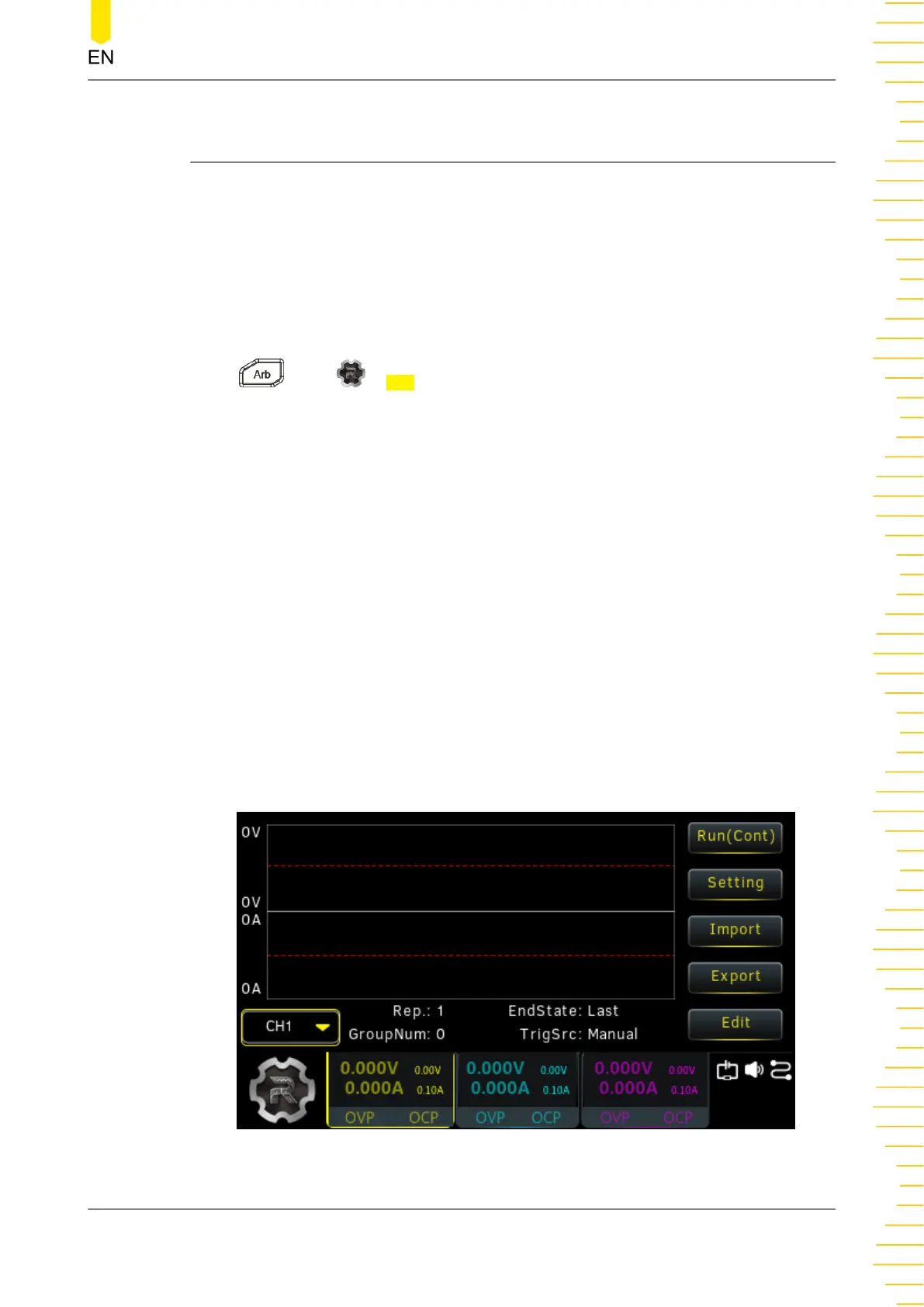

Figure 9.1 Arb Main Interface
Arb Function
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DP2000 User Guide
37
