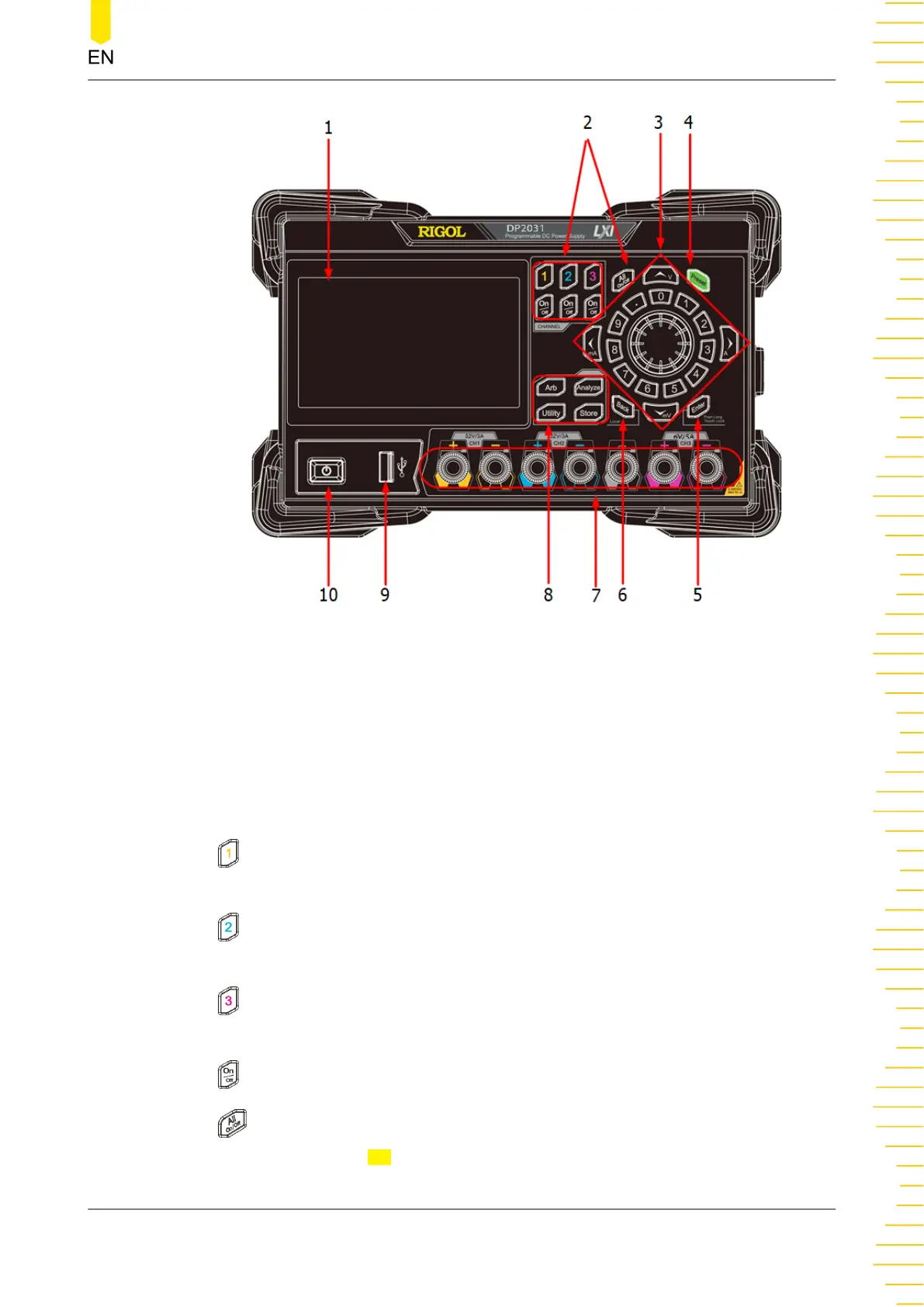

Figure 4.3 DP2000 Front Panel
1. LCD
4.3-inch TFT touch screen to display the the system parameter settings, output
state, menu items, prompt messages, etc.
2. Channel Selection Keys and Output On/Off Keys
The keys are channel selection keys and output on/off keys.
Press this key to select CH1 to control. You can set the parameters of this
channel, such as voltage, current, and overvoltage/overcurrent protection.
Press this key to select CH2 to control. You can set the parameters of this
channel, such as voltage, current, and overvoltage/overcurrent protection.
Press this key to select CH3 to control. You can set the parameters of this
channel, such as voltage, current, and overvoltage/overcurrent protection.
Pressing this key can turn the corresponding channel on or off.
Press this key and a prompt message will be displayed asking whether to turn
all channels on. Tap
OK to turn all channels on. Pressing this key again can turn all
channels off.
