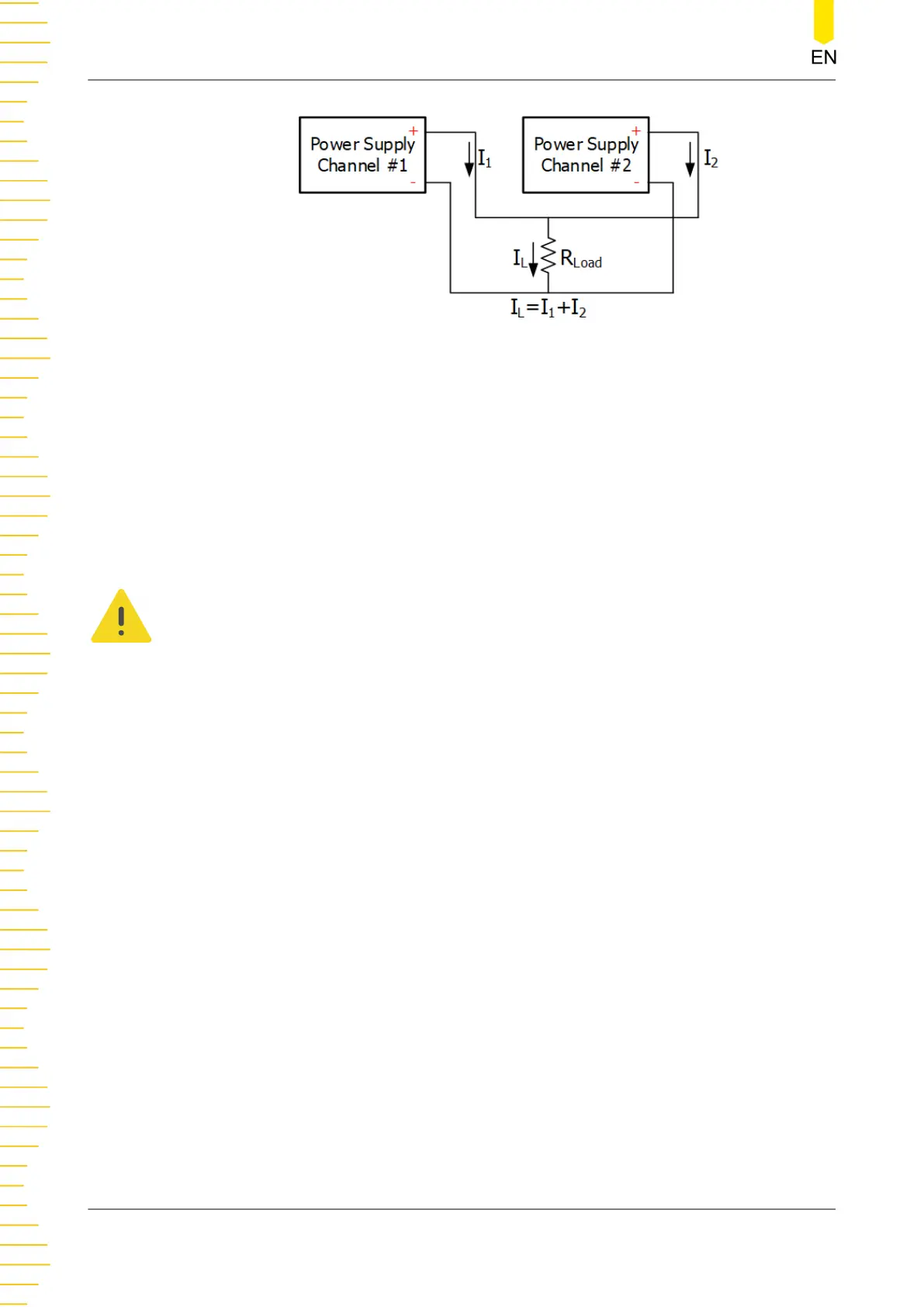

Figure 8.4 External Parallel Circuit
Operation Procedures:
1. Connect the power supply to load as shown in the figure above. Pay attention to
the polarity when making connections.
2. Set proper parameters for each channel (refer to
Constant Voltage Output
and
Constant Current Output
) and turn on the output of each channel. All channels can
work in CV mode or CC mode.
CAUTION
All the channels can work in CV or CC mode according to the actual need of the load.
Series/Parallel Connections
DP2000 User Guide
36
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
