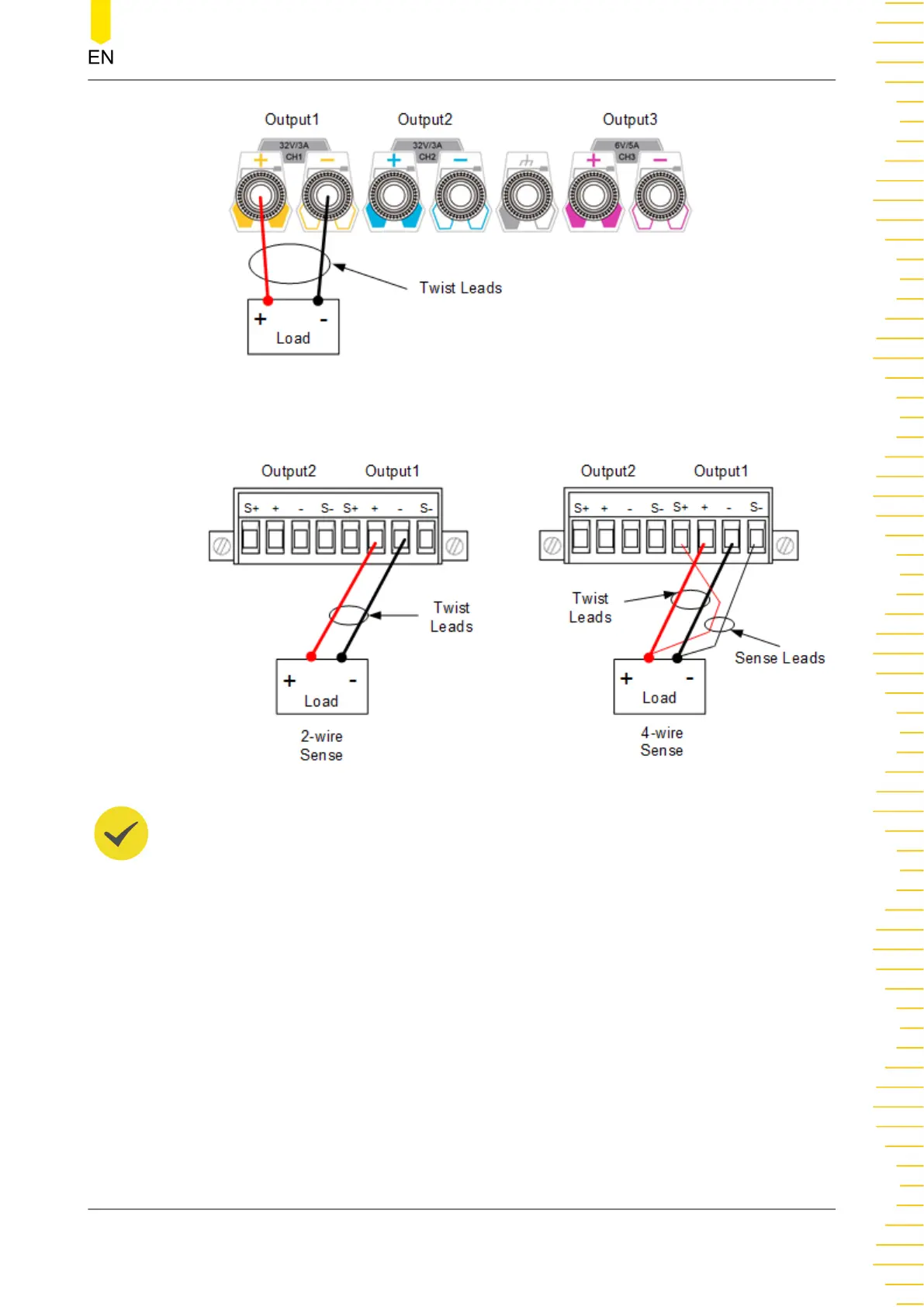

If voltage drop in the load leads is a concern, please connect the sense leads to load

(refer to

Sense Settings

). The figure below shows how to connect rear output

terminals to a load in internal parallel mode.

TIP

In internal series/parallel connections, CH1 and CH2 always have identical voltage and current

setting value.

External Parallel Connections

This series power supply supports external parallel connection for multiple channels

(from a single power supply or multiple power supplies). The figure below illustrates

how to connect two outputs in external parallel.

Series/Parallel Connections

DP2000 User Guide
