Tap the Wave drop-down button to select a waveform template. Available
waveform templates include Sine, Pulse, Ramp, Stair UP, Stair Dn, StairUpDn, Exp
Rise, and Exp Fall.
- Sine

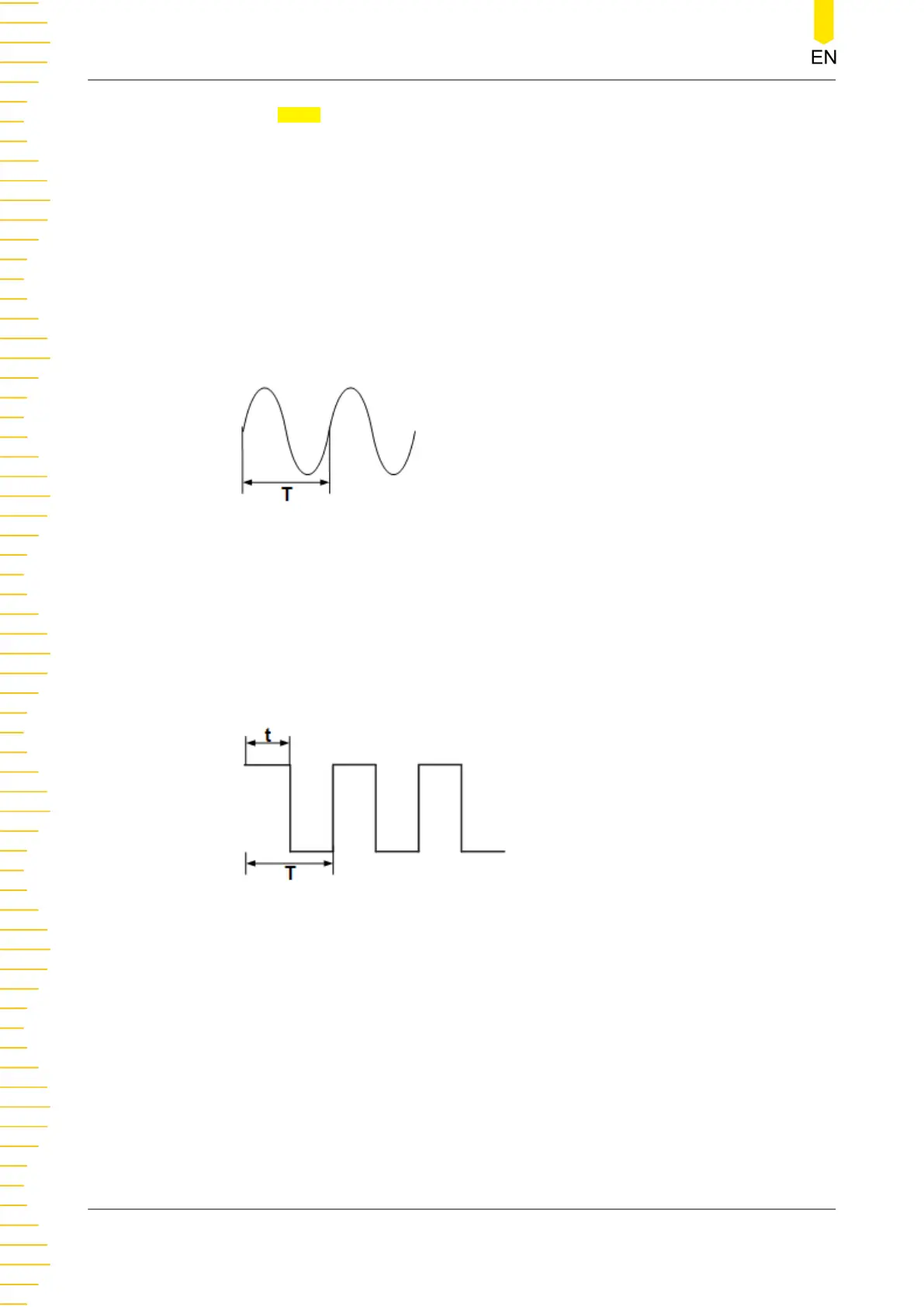

The Sine waveform is as shown in the figure below. Setting the maximum and
minimum value creates the amplitude. Setting the period (T) and time interval
creates the total number of points (P) in a complete period. Thus, a Sine
waveform is created. Setting the inserted groups (G) determines the number of
groups to be inserted in the Arb editor.
- Pulse
The Pulse waveform is as shown in the figure below. Setting the maximum and
minimum value creates the amplitude. Setting the positive pulse width (t)
determines the duration of high levels. The currently set period (T) minus the
positive pulse width (t) is the duration of low levels. Setting the inserted groups
(G) determines the number of groups to be inserted in the Arb editor.
- Ramp
The Ramp waveform is as shown in the figure below. Setting the maximum and
minimum value creates the amplitude. Setting the period (T) and time interval
creates the total number of points (P) in a complete period. Setting the
symmetry (Sym) creates the Ramp waveform. The rising edge of the Ramp
waveform has int (P*Sym)
[1]
points and the falling edge has P-int (P*Sym)
points.
Arb Function
DP2000 User Guide
42
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
