Rigol DP2000 Series User Manual

MIN)/{(N/2)-1} and then drops to MIN by step size of (MAX-MIN)/(N/2).
Interval=Period/Number of Steps.
- Exp Rise

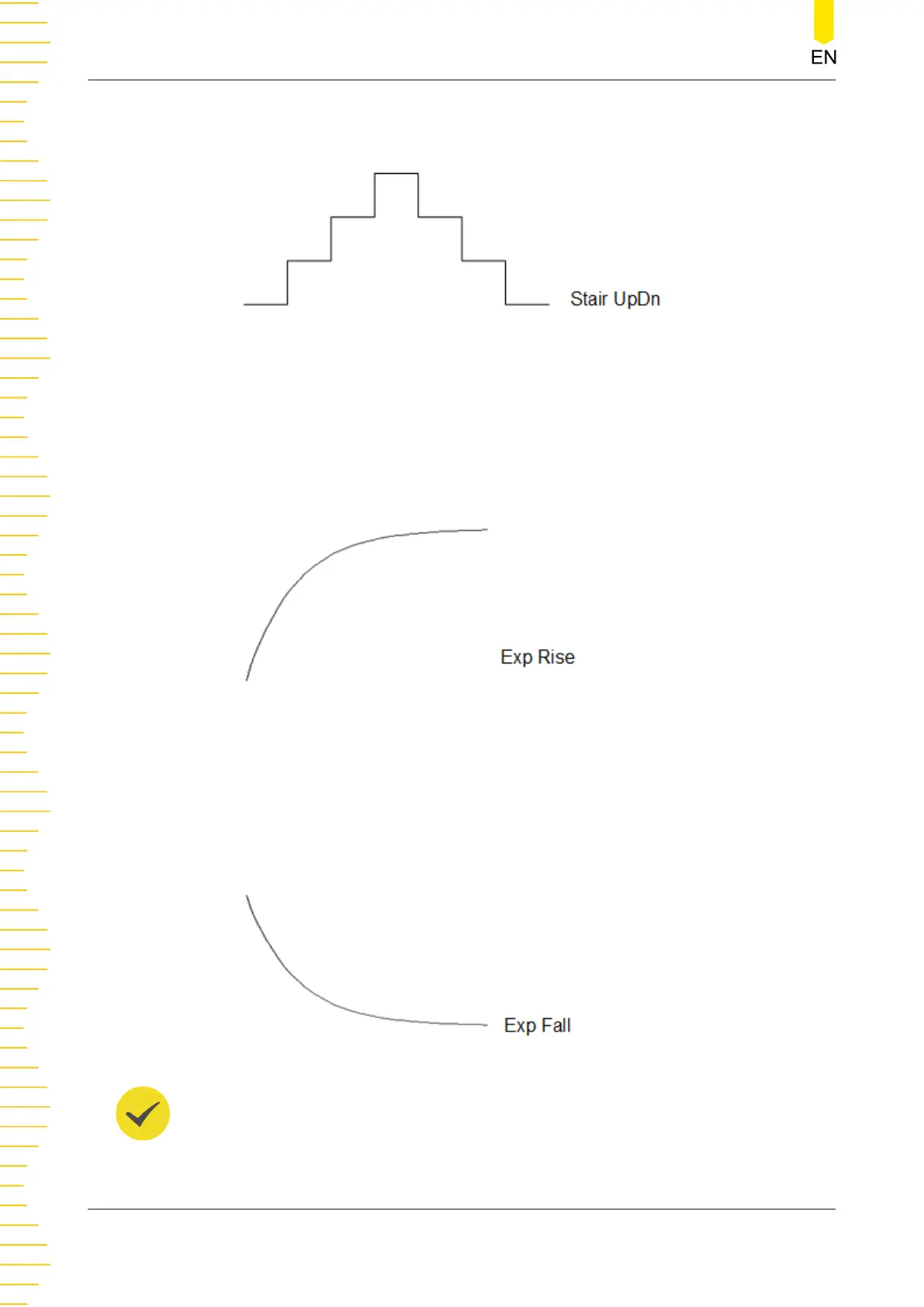

The Exp Rise waveform is as shown in the figure below. Setting the maximum
(MAX), minimum (MIN), inserted groups (total number of points, denoted by P),
interval, and rise index (denoted by RiseIndex) creates the Exp Rise waveform.
The waveform function is (MAX-MIN)*(1-e
-i*RiseIndex/P
); wherein, “i” is
independent variable ranging from 0 to (P-1).
- Exp Fall
The Exp Fall waveform is as shown in the figure below. Setting the maximum
(MAX), minimum (MIN), inserted groups (total number of points, denoted by P),
interval, and fall index (denoted by FallIndex) creates the Exp Fall waveform. The
waveform function is (MAX-MIN)*e
-i*FallIndex/P
; wherein, “i” is independent
variable ranging from 0 to (P-1).
TIP
When the template selected is Exp Rise or Exp Fall, the maximum or minimum value cannot
be reached due to the characteristic of the exponential function itself. The available range
depends on the rise/fall index currently set. The larger the rise/fall index, the wider the
Arb Function
DP2000 User Guide
44
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
