2. Configure network parameters
Configure the RS232 parameters according to
RS232 Setting
.
3.
Search for the device resource

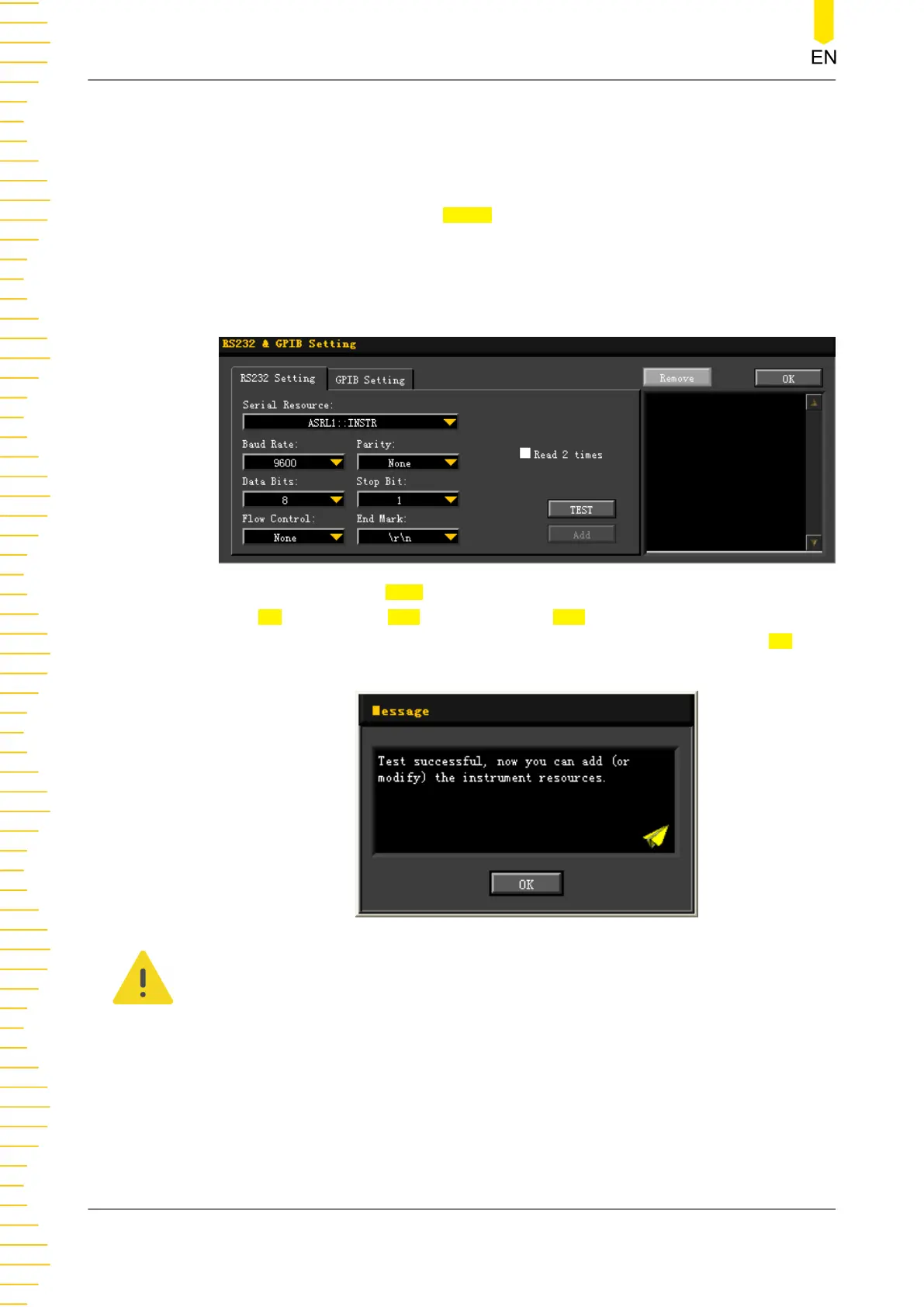

Start up Ultra Sigma and click RS232 to open the window as shown in the figure
below. Select the instrument resource name that you want to add and set the
corresponding parameters (such as baud rate and check bit) according to the
current RS232 parameter setting of the instrument (Note: \r\n must be selected as
the End Mark).
After the setting, click TEST and the dialog box as shown in figure is displayed.
Click
OK; at this point, Add is available. Click Add and the instrument resource
name currently selected will be displayed at the right of the window. Click OK to
add the instrument resource.
CAUTION
If the test fails, please check whether the instrument can communicate normally with
the PC via the RS232 cable and whether the RS232 parameters of the software match
with the current settings of the instrument.
4. View the device resource
The resources found will appear under the "RIGOL Online Resource" directory.
5. Control the instrument remotely
Remote Control
DP2000 User Guide
88
