ROBOT S6

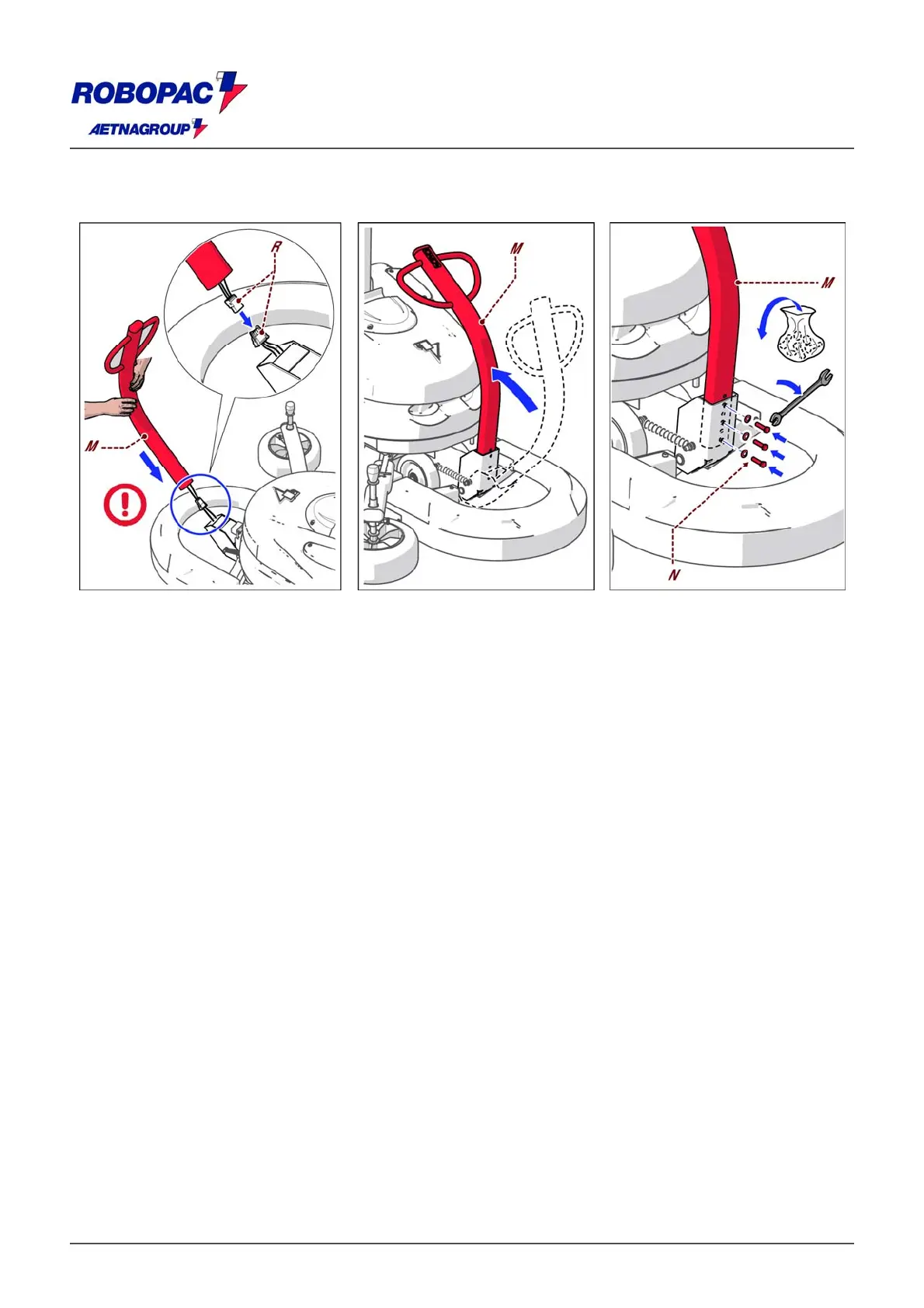

2. Turn the rudder (M), connect the connectors (R) and insert it into the machine's support.
3. Lift the rudder (M) and fix it with the screws (N).
30/94
