ROBOT S6

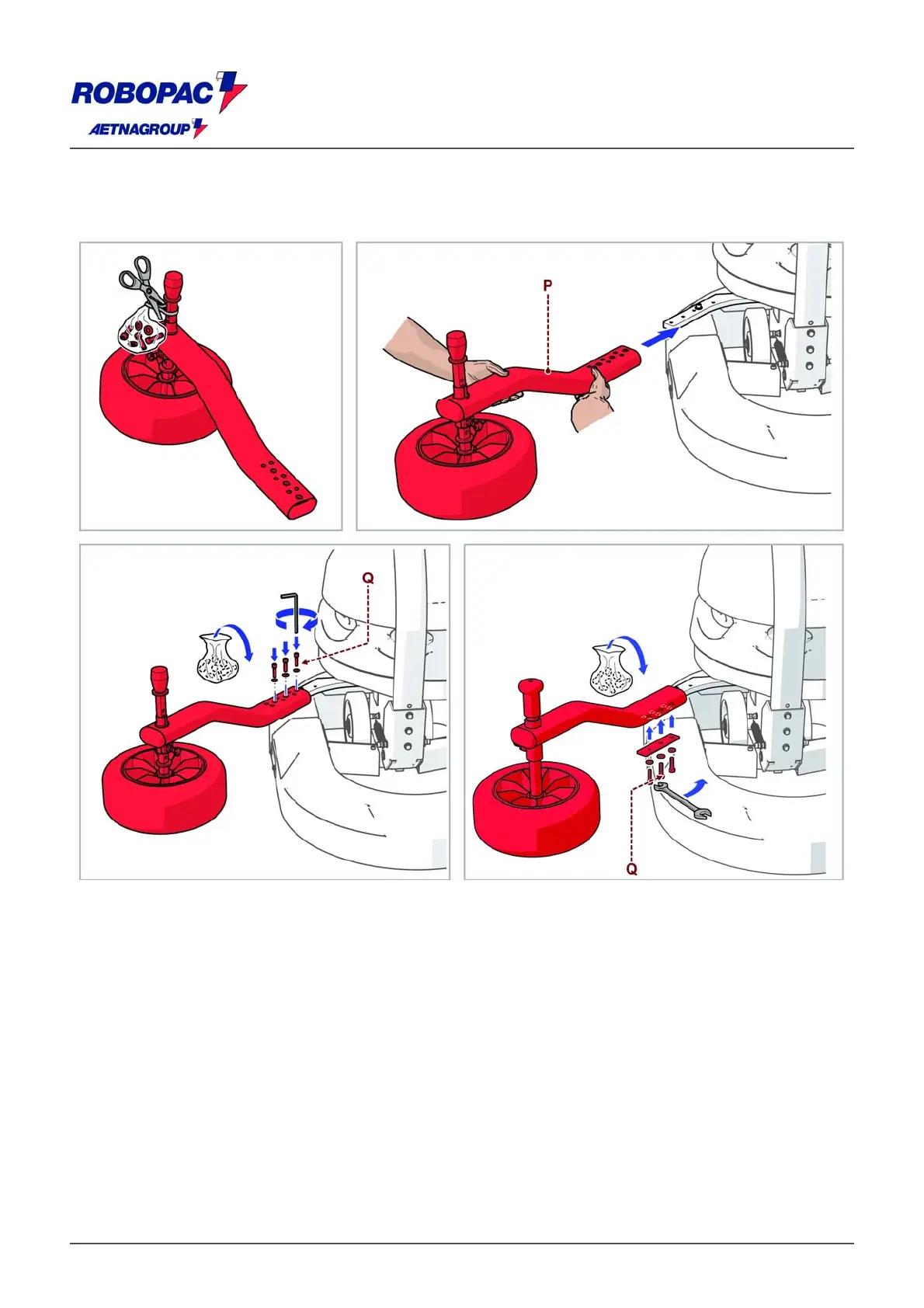

4. Assemble the wheel feeler (P) and secure it with the screws (Q).
Important
T
o install the rudder and the feeler, use the nuts and bolts supplied with the machine.
31/94
