5.2.2.4. Square
Enter the square length (l) and the height (h) at which the square is located.

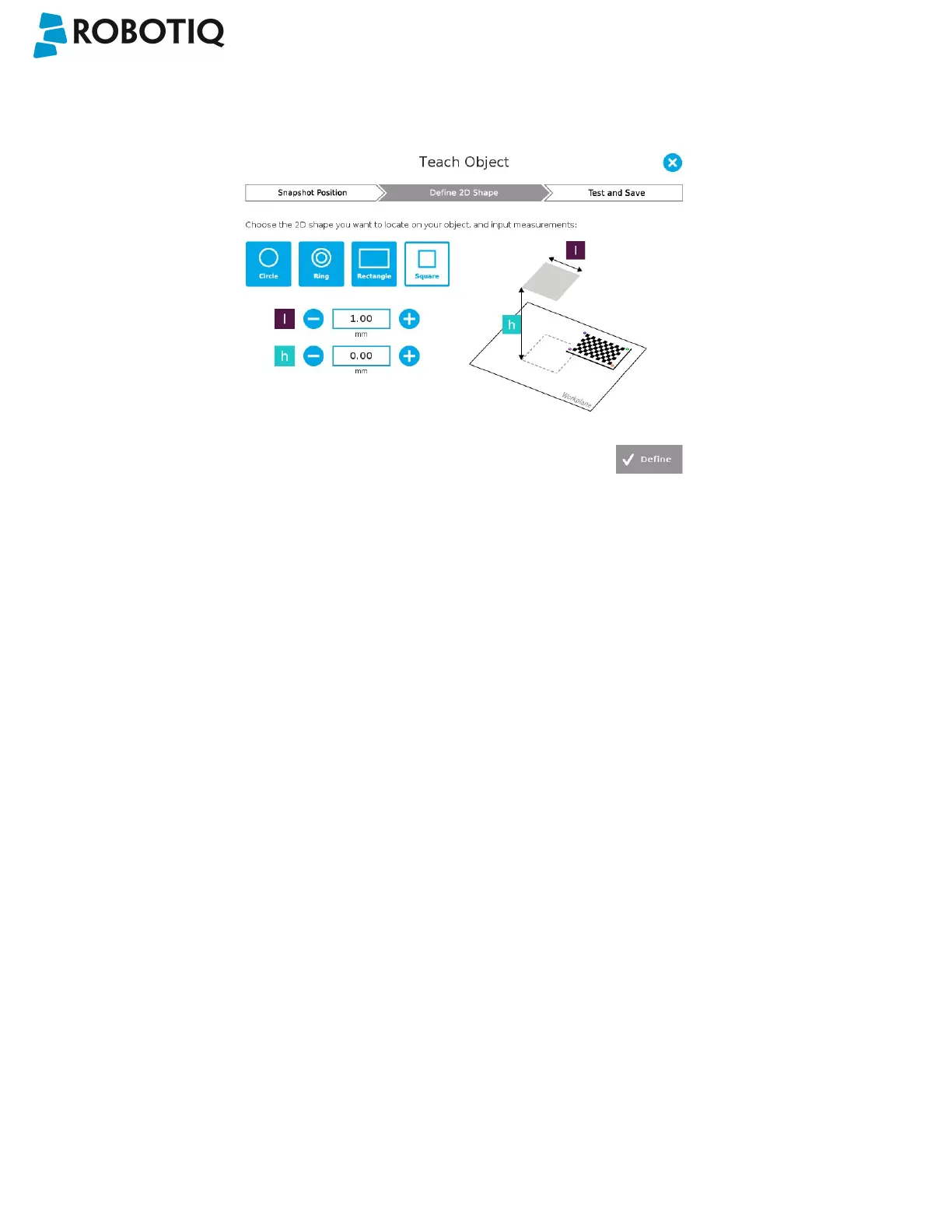

Fig. 5-19: Definition of a square 2D shape.
When the process is done, the wizard will switch to the Configure Model step. Please refer to the Configure Model section
for more details.
