Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 109

Chapter 2 Installation Instructions

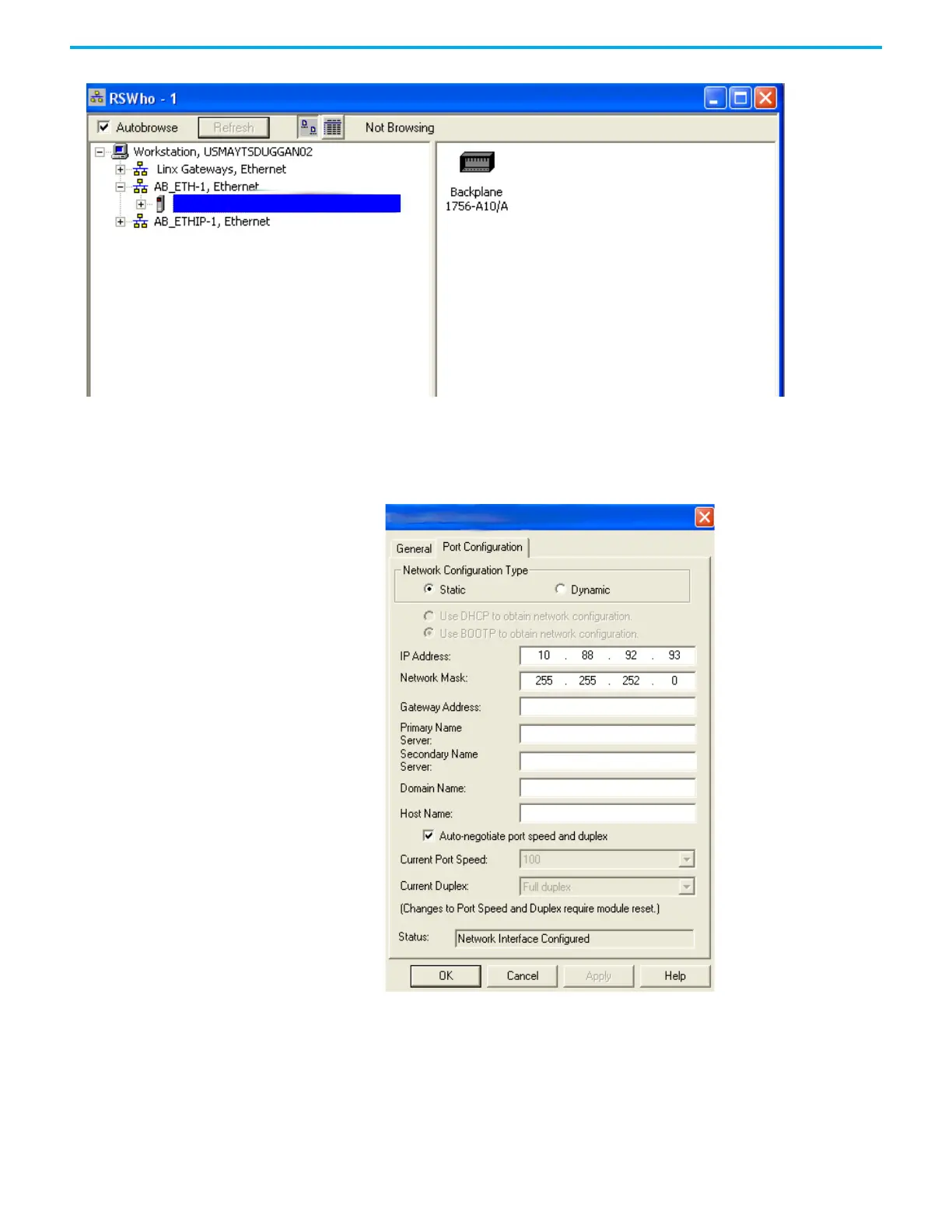

5. Right-click the 1715 EtherNet/IP module and choose Module

Configuration.

6. Click the Port Configuration tab.

The Module Configuration dialog box appears.

7. For Network Configuration Type, click Static to assign this configuration

to the port.

a. In the IP Address field, verify the IP address.

b. In the Network Mask field, verify the network mask address.

The other fields are optional depending on your network and/or IT

requirements. Verify or complete as needed.

10.88.92.93, 1715-AENTR

1715-AENTR
