Install the I/O Modules The I/O modules that are used for the 1715 Redundant I/O system are as
follows:
• 1715-IB16D 16-channel digital input module
• 1715-OB8DE 8-channel digital output module
• 1715-IF16 16-channel analog input module
• 1715-OF8I 8-channel analog output module

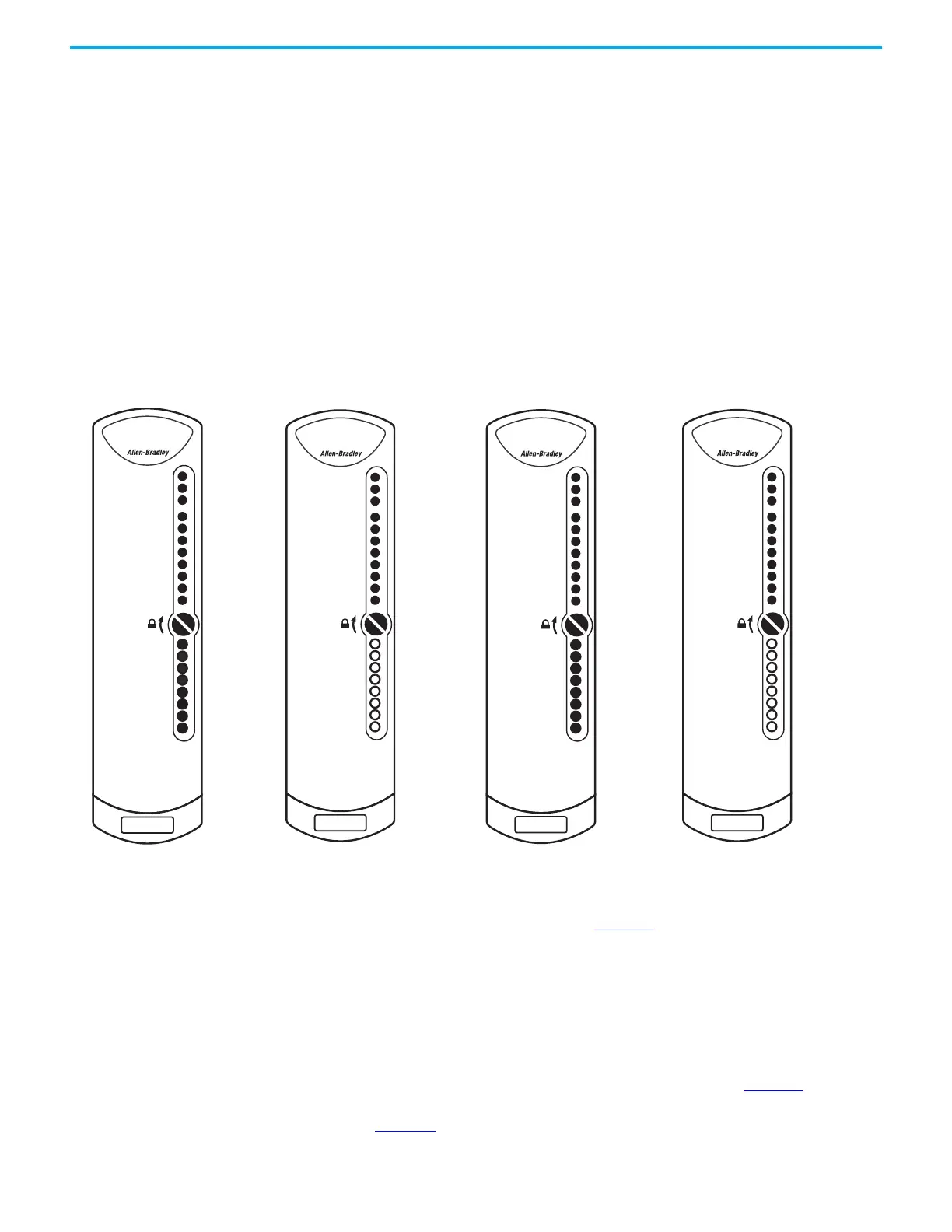

Figure 60 - I/O Modules
Modules are installed by pressing them onto the 1715-A3IO three-slot base unit.
Follow these steps.
1. Inspect the connector pins, see page 102
.
2. Inspect the identification labels on the sides of the modules and record
the location and the module information that is shown on the label.
This helps you when installing a new or replacement module in the
future by allowing you to order the replacement parts without disturbing
the system.
3. Check the coding pegs on the termination assembly and verify that they
match the sockets on the back of the I/O module, see page 102
.
4. Verify that the slot on the head of the module clamp screw is vertical, see
page 102
.
