192 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020
Chapter 6 Configure the Redundant I/O System
9. Click OK.
Step 2: Add the Analog Input Module in Simplex Mode
Add a 1715-IF16 Analog Input module in Simplex mode to the project.
1. Add the new module, see page 177
.
2. Select the 1715-IF16 module, see step 2
on page 189.
The General tab appears.
See Figure on page 178
for General parameter settings.

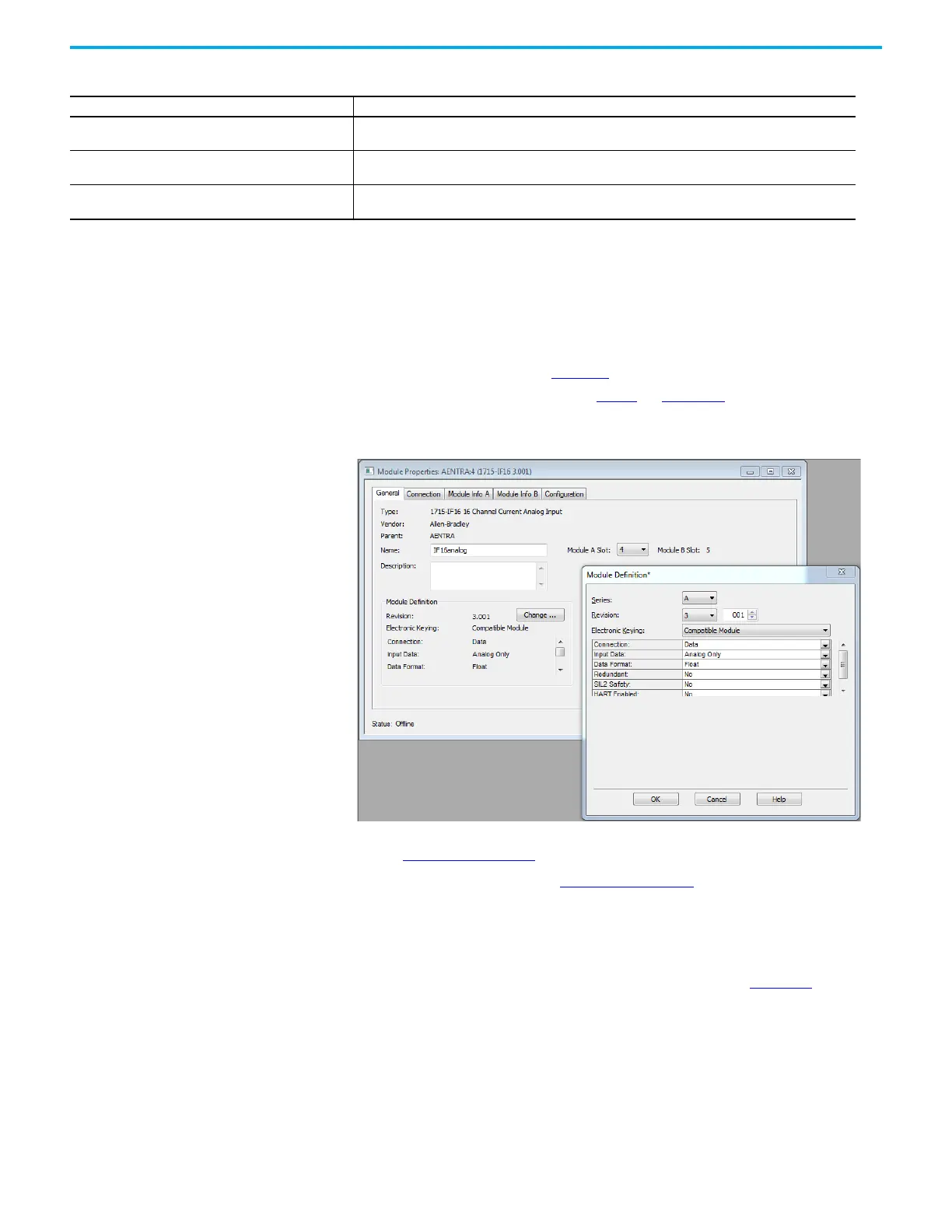

3. Click Change, referring to Figure on page 190
for Module Definition
parameter settings.
4. Change Redundant to No to place the module in Simplex mode.
5. Click OK.
The Verify Module Properties dialog box appears. See page 184.
6. Click Yes.
A new General tab appears showing only one slot as available. The
module is now in Simplex mode.
Low Engineering
Enter the Low Engineering value for the channel (between -9999999…99999999). The default is 0.0. Low
Signal and Low Engineering values are shown in pairs.
High Signal
Enter the High Signal value for the channel (between 0.0…20.0 mA). The default is 20.0 mA. This value
must be greater than the Low Signal value. High Signal and High Engineering values are shown in pairs.
High Engineering
Enter the High Engineering value for the channel (between -9999999…99999999). The default is 100.0.
High Signal and High Engineering values are shown in pairs.
Table 35 - Configuration Parameters for the Analog Input Duplex Module
Parameters Description
