Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 235

Chapter 8 Using SIL 2 Add-On Instructions with 1715 Redundant I/O Modules

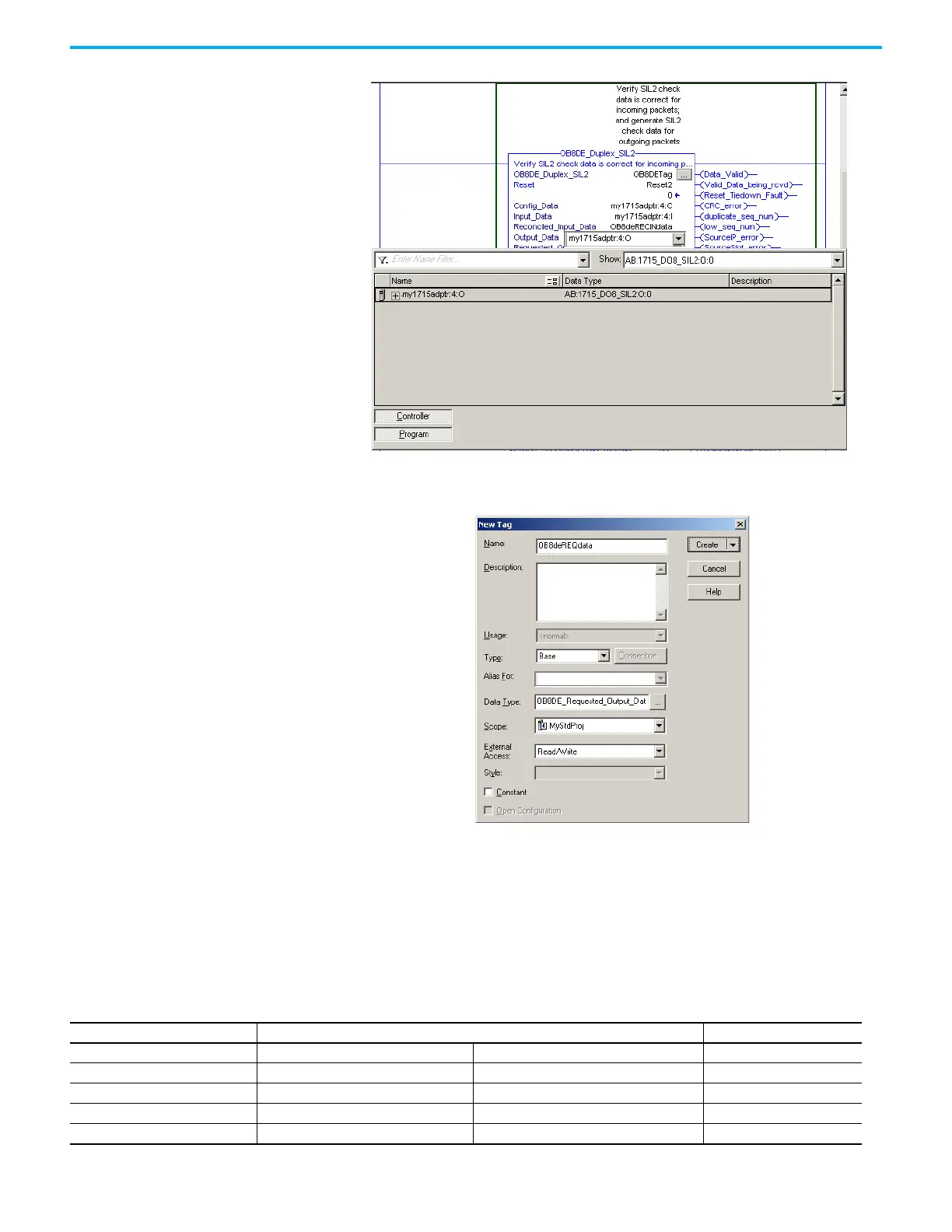

8. Create a tag with the appropriate Add-On Instruction data type for the

Requested Output Data.

9. Enter the module RPI.

To optimize system bandwidth, type the same RPI value from the module

configuration.

Add-On Instruction Scan Times

Table 46 - Maximum Scan Rates Measured - The L75 Controller was used for taking measurements.

Module Add-On Instruction Scan Rate µs (max measured)

1715-AENTR AENTR_SIL2 Duplex 455

1715-IB16D IB16D_Simplex_SIL2 Simplex 340

1715-IB16D IB16D_Duplex_SIL2 Duplex 378

1715-IF16 IF16_Simplex_SIL2 Simplex 831

1715-IF16 IF16_Duplex_SIL2 Duplex 832
