198 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020
Chapter 6 Configure the Redundant I/O System
12. Click OK.
Step 2: Add the Analog Output Module in Simplex Mode
1. Add the new module, see page 177.
2. Select the 1715-OF8I Analog Output Module, referring to step 2
on
page 194
, and click OK.
The General tab appears.
See figure on page 178
for General parameter settings.

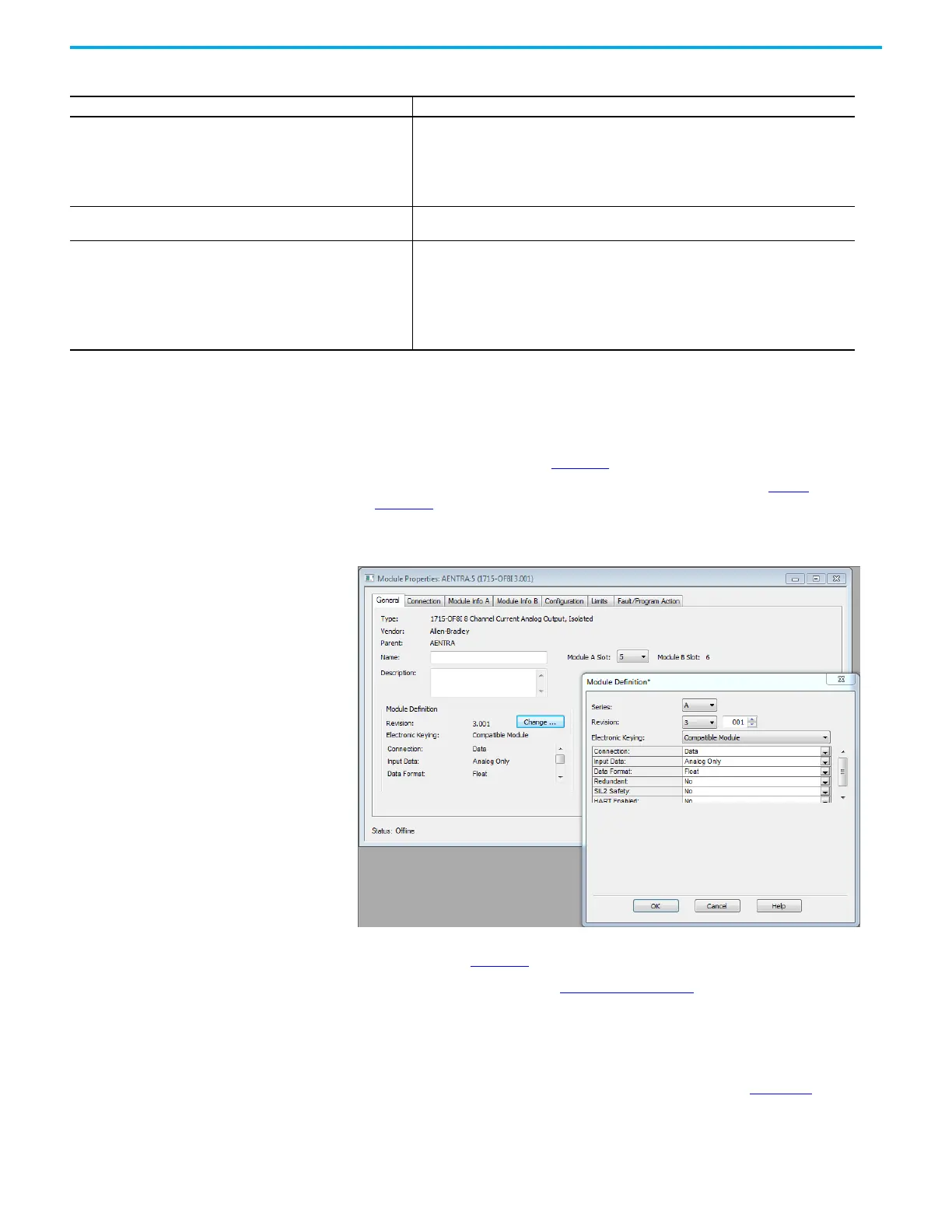

3. Click Change, referring to Figure on page 190
for Module Definition
parameter settings.
4. Change Redundant to No to place the module in Simplex mode.
5. Click OK.
The Verify Module Properties dialog box appears. See page 184.
6. Click Yes.
Ramp to Program Value
Check the Ramp to Program Value checkbox to transition the channel from the current value
to the program value (when in Program mode and limited by Ramp Rate). The default is
cleared.
Ramp to Program Value is enabled (excluding Hard Run mode) when the Program mode is set
to Use Program Value. Ramp to Program Value is dimmed (including Hard Run mode) when
the Program mode is set to Hold Last State.
Program Mode Communication Failure Output State
Choose the output state when there is communication failure in Program mode (Program
mode or Fault mode). The default is Program mode.
Ramp Rate
Displays the Ramp Rate for the channel as it is displayed on the Module Properties dialog box
- Limits tab (1715-OF8I). To change this value, enter a Ramp Rate value on the Module
Properties dialog box - Limits tab (1715-OF8I).
Ramp Rate is enabled when online in the following:
• Program mode
• Remote Program mode
• Remote Run mode
Table 38 - Fault/Program Action Parameters for Analog Output Duplex Module
Parameters Description
