194 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 6 Configure the Redundant I/O System

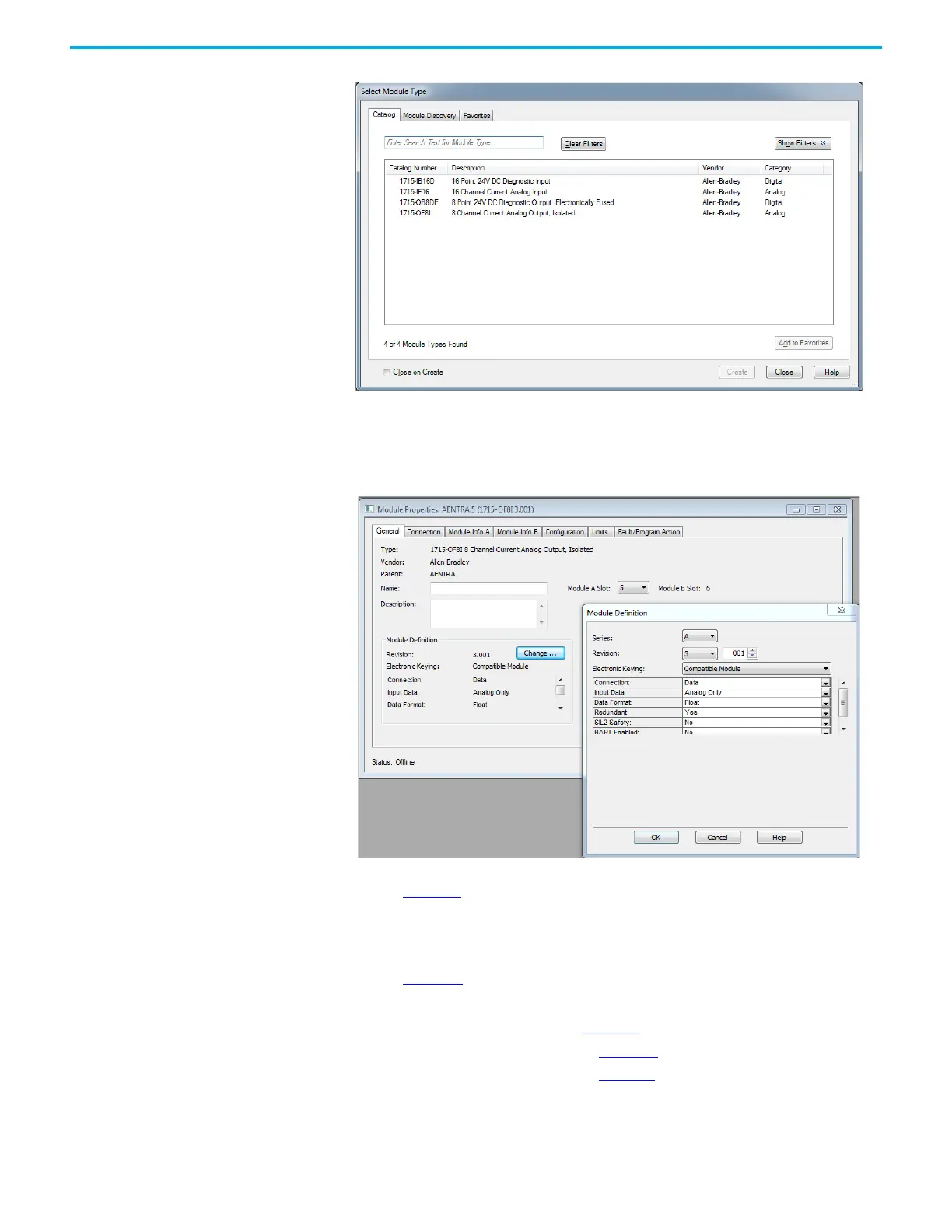

2. Expand the Analog module list, select the 1715-OF8I module, and click

OK.

The General tab appears.

See page 178

3. Click Change.

4. Verify that Redundant is Yes.

See page 190

5. Click OK.

6. Click the Connection tab, see page 169

7. Click the Module Info A tab, see page 170

8. Click the Module Info B tab, see page 171

9. Click the Configuration tab.

The Configuration tab appears.
