Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 171
Chapter 6 Configure the Redundant I/O System

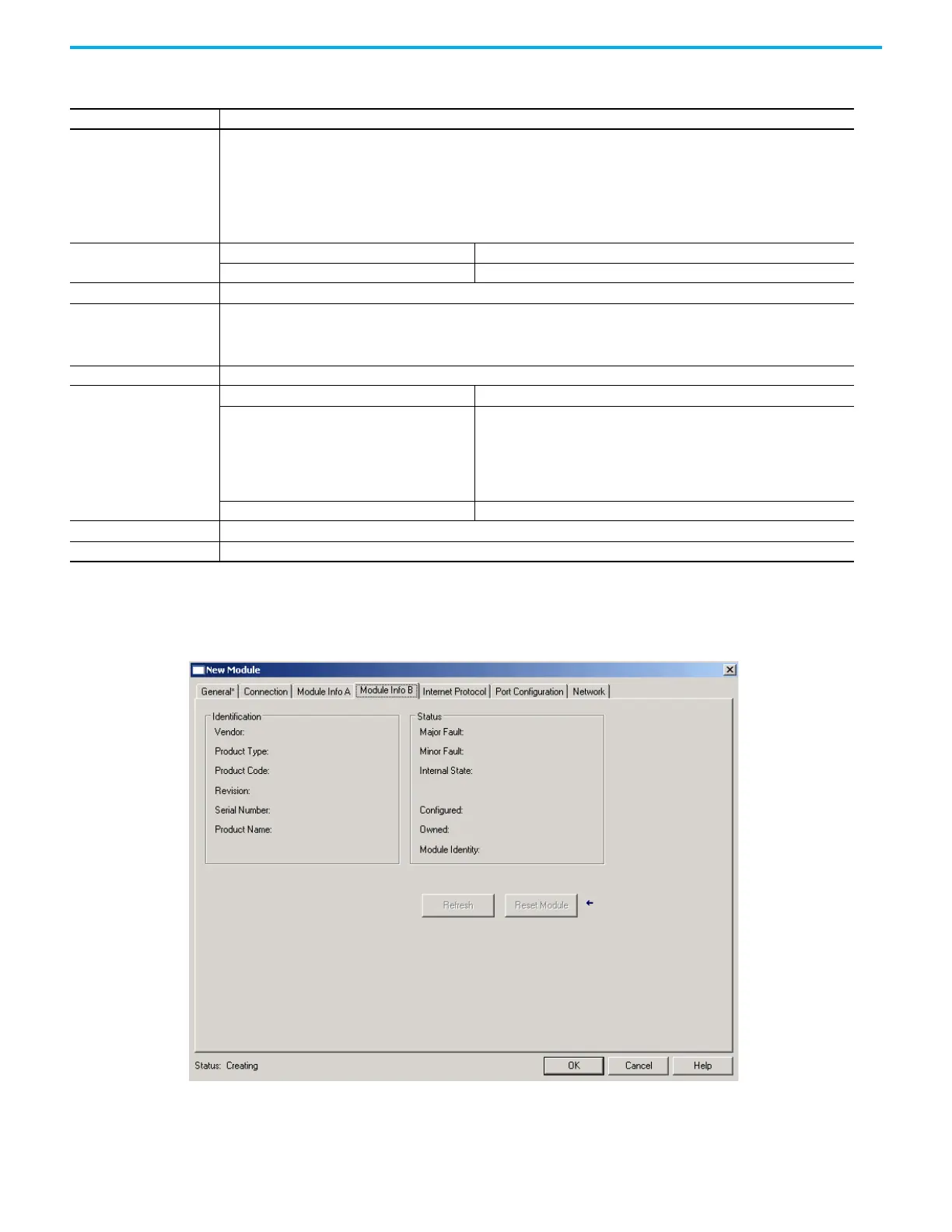

8. Click the Module Info B tab.
The Module Info B tab appears.
The Module B Info Tab displays module and status information about the
secondary adapter, in slot 0 or 1. (During initial setup, the secondary adapter is
Table 25 - Module Info A Parameters
Parameters Description
Identification
Displays the module’s:
•Vendor
• Product Type
• Product Code
• Revision
• Serial Number
•Product Name
Status
Major/Minor Fault
Major Fault Minor Fault
Displays the fault type Displays the fault type
Internal State Displays the module’s current operational state
Configured
Displays a yes or no value, which indicates whether the module has been configured by an owner controller who is connected to it -
Once a module has been configured, it stays configured until the module is reset or power is cycled, even if the owner drops
connection to the module. This information only applies to I/O modules and does not apply to adapters, scanners, bridges, or other
communication modules.
Owned Displays a yes or no value indicating whether an owner controller is connected to the module.
Module Identity
Displays If the physical mode is
Match
Agrees with what is specified on the General Tab.
For the Match condition to exist, these must agree:
•Vendor
• Module Type (the combination of Product Type and Product Code for a
particular Vendor)
• Major Revision
Mis-match Does not agree with what is specified on the General Tab.
Reset Click Reset to return a module to its power-up state by emulating the cycling of power.
Refresh Module Click Refresh Module to refresh the tab with new data from the module.
