Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 163
Chapter 6 Configure the Redundant I/O System

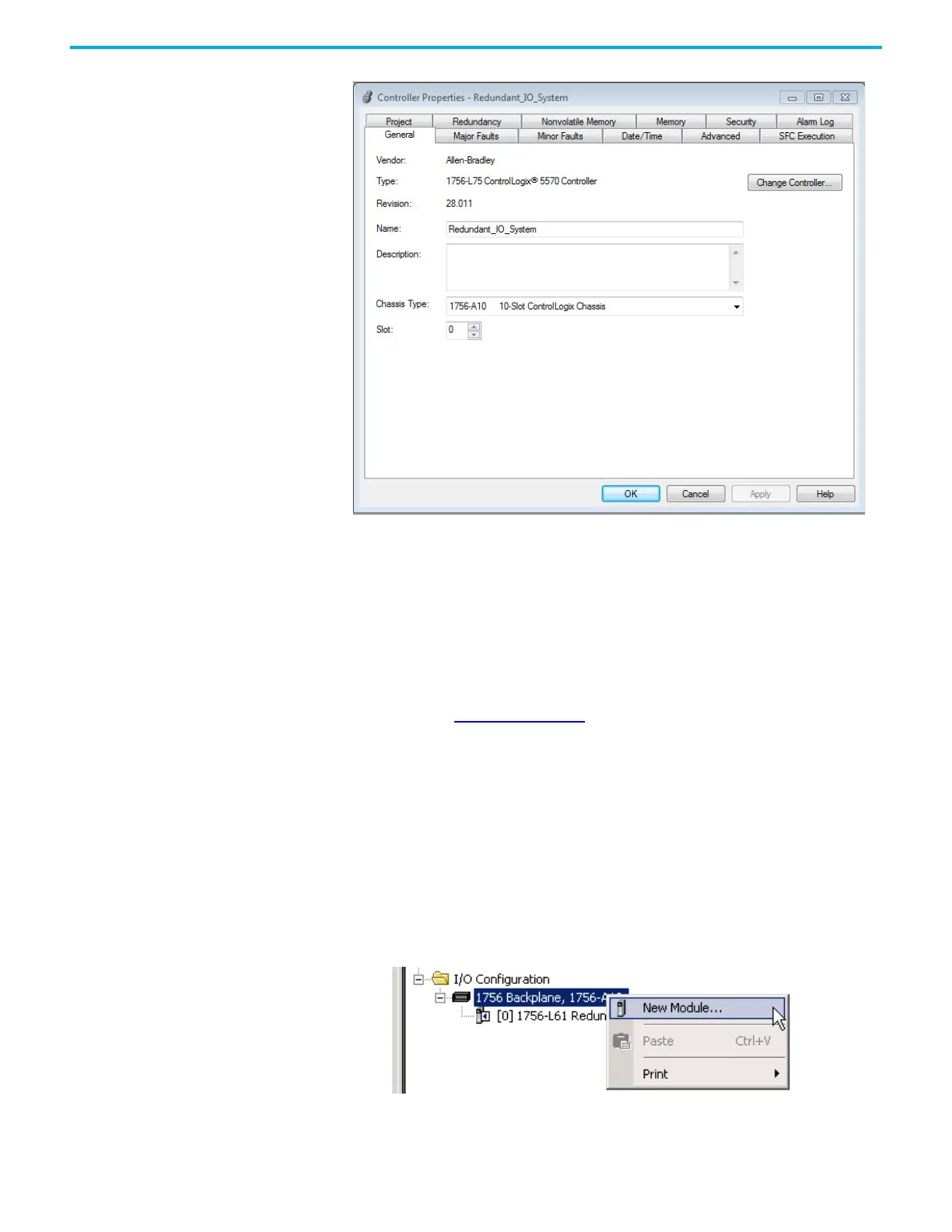

2. In the Controller Properties dialog box, set controller configuration
information for the open project, and when online—for the attached
controller.
The tabs that appear are particular to the type of controller you have
selected.
3. Click OK when you are done configuring each tab for your controller.
For a complete description of each tab and the appropriate configuration
settings, refer to rok.auto/literature
and type in the name of your controller
under Keyword search.
Next, add a ControlLogix Ethernet communication module to the project to let
the ControlLogix chassis communicate with the 1715 Redundant I/O System.
The type of module you add depends on the needs of your system.
Step 3: Add a 1756-EN2TR Module to the Project
1. In the Logix Designer project, right-click the 1756 backplane in the I/O
Configuration folder, and choose New Module.
To Next Page
