Chapter 6 Configure the Redundant I/O System

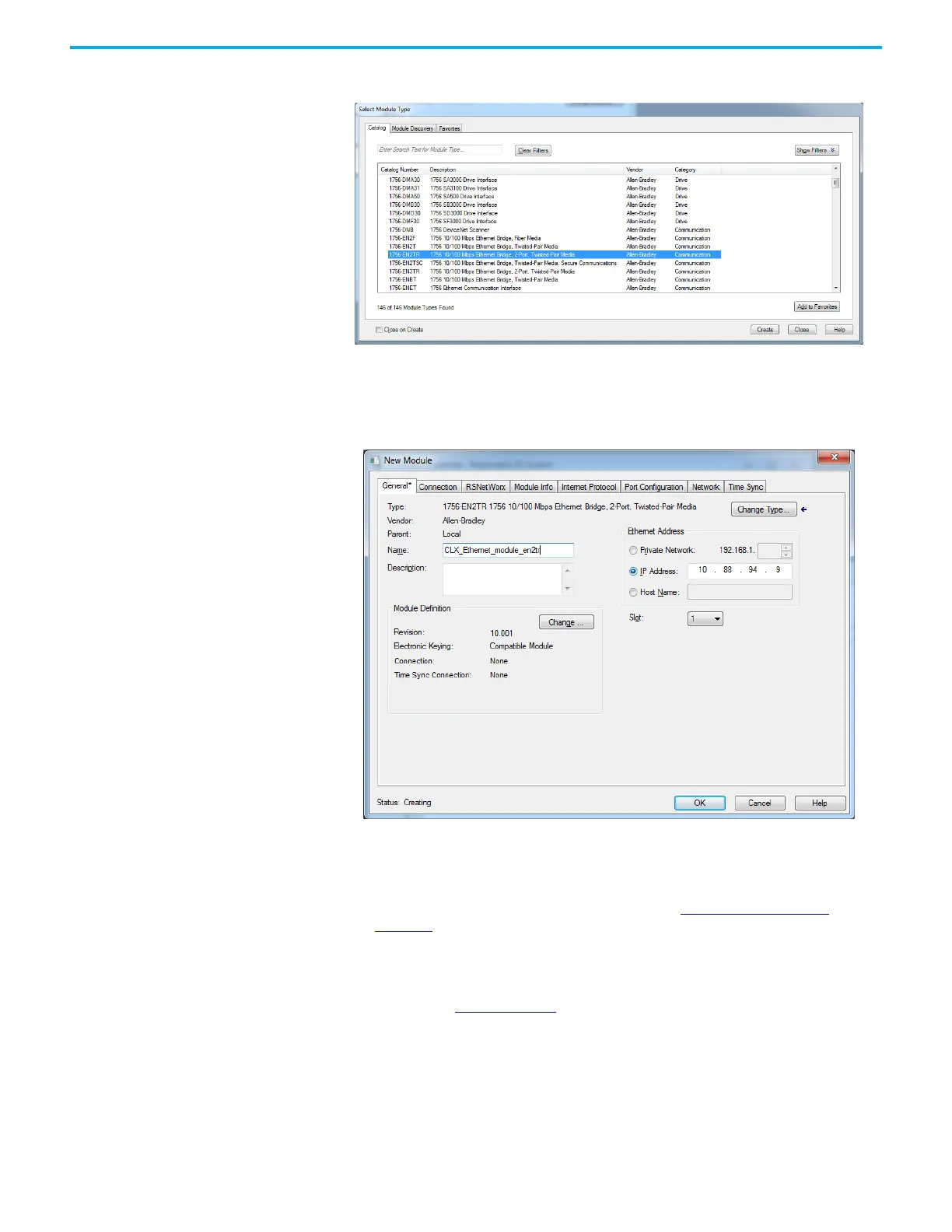

The Select Module dialog box appears.
2. Expand the Communications list, select the 1756-EN2TR module. and
click OK.
The Module Properties dialog box appears.
3. Name the module, enter the IP address, enter the Slot number (we chose
1 for this example).
4. Click Change.
5. Choose your Electronic Keying method, see Electronic Keying
on
page 118.
6. Click OK.
7. To complete configuration of the 1756 Ethernet module, refer to the
EtherNet/IP Network Configuration User Manual,
publication ENET-UM001
.
The I/O configuration folder of your project now looks similar to this.
