Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 75

Chapter 2 Installation Instructions

Recommended Circuits for Digital Inputs

These circuits can be used for simplex and duplex configurations of digital

input modules. Fit a fuse in each circuit to help protect the field wiring.

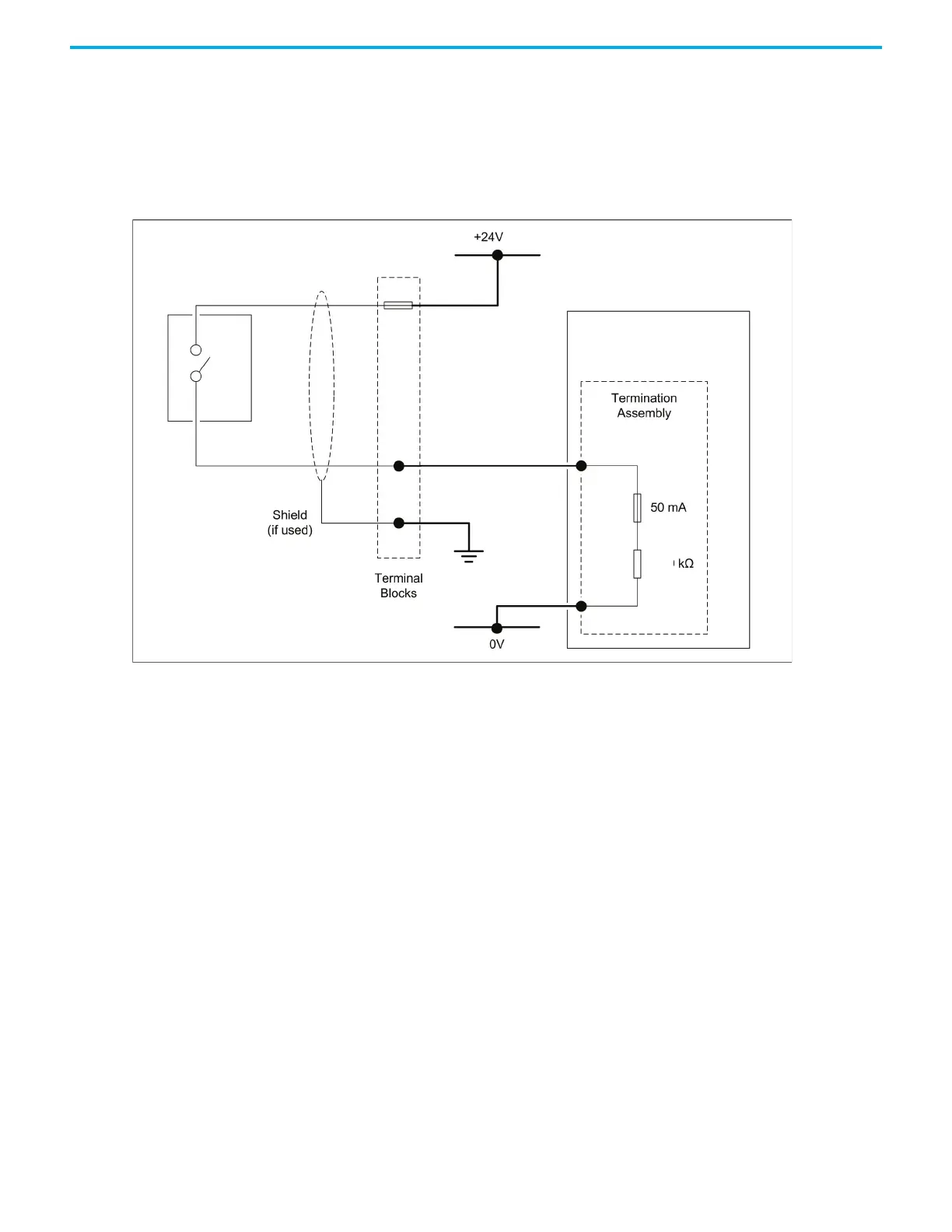

Figure 31 - Standard Input

5.11

33113 M

Default Chapter3
