Chapter 4 Digital I/O Operation
2. Do one of the following:

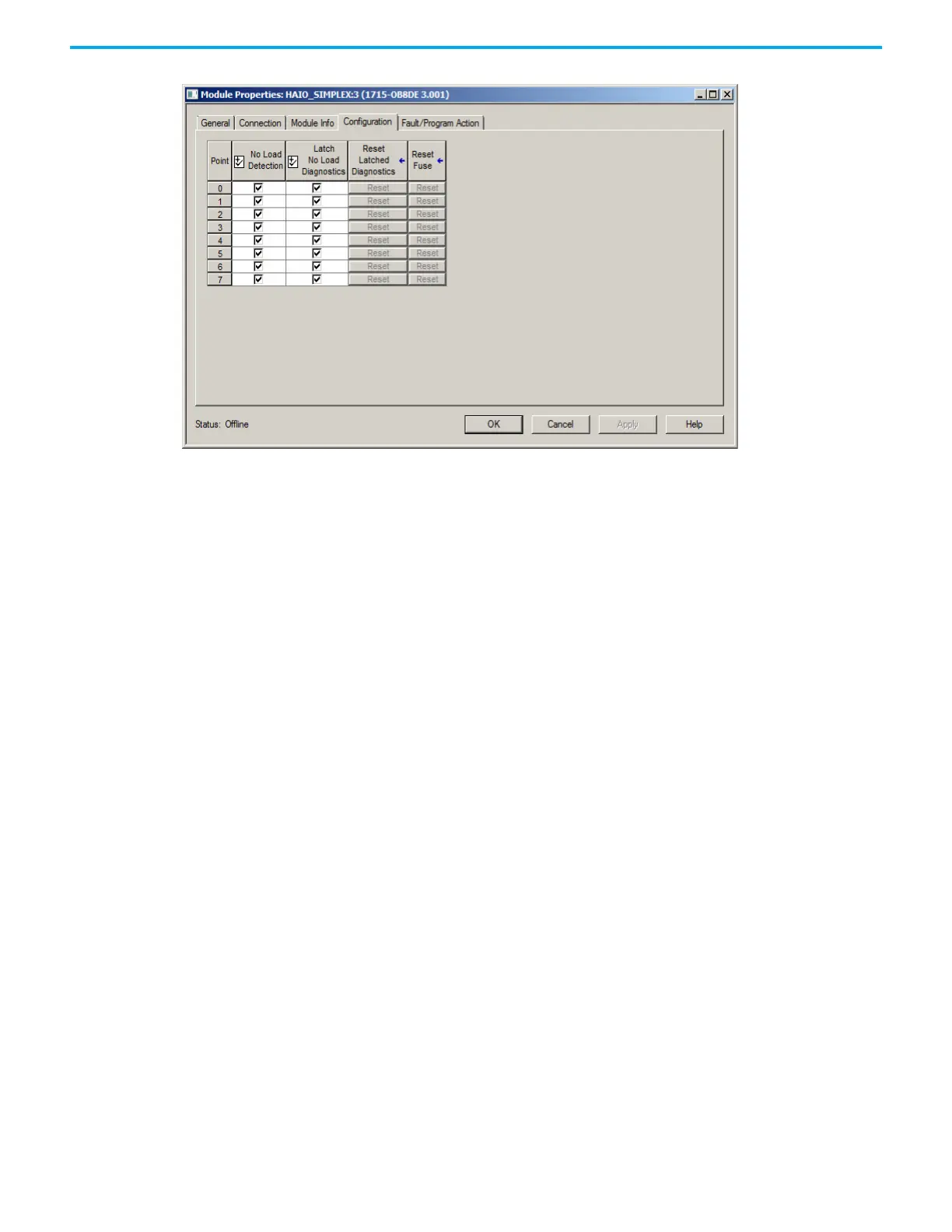

• Check a checkbox to enable diagnostic latching for a specific point.
• Clear the checkbox to disable diagnostic latching for a specific point.
3. Click OK.
Shutdown State
The output module shutdown state defines the behavior of the output module
if communications to the module fail within the timeout period or if the
processor is put into Program mode. This occurs on a channel-by-channel
basis. These principles apply for the 1715 analog and digital output modules.
The shutdown state can be configured to these values:
• On-energize
• Off-de-energize
• Hold last state
To Next Page
