190 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 6 Configure the Redundant I/O System

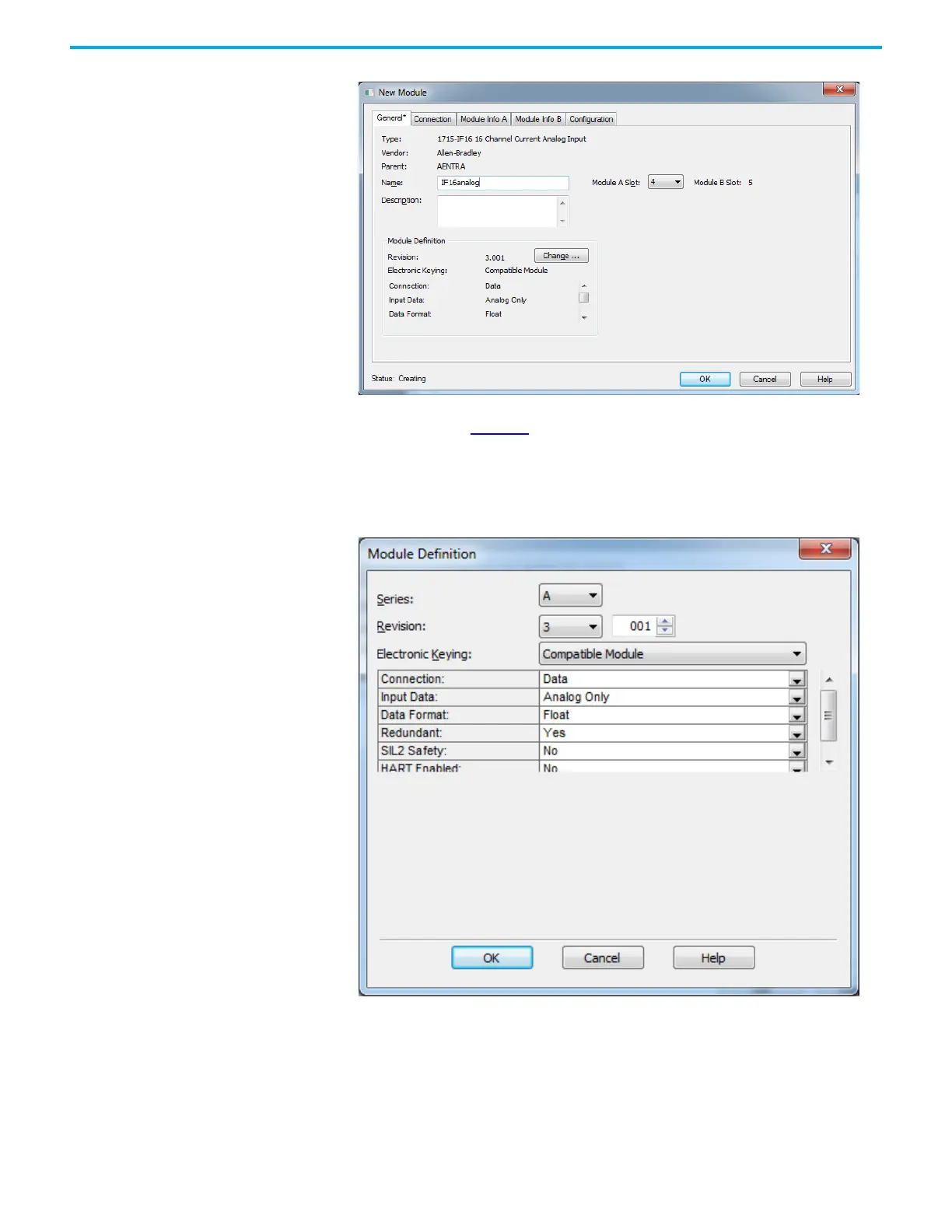

See figure on page 178 for detailed parameter information for the

General tab.

3. Click Change.

The Module Definition dialog box appears.
