148 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 5 Using 1715 Analog I/O Module Features

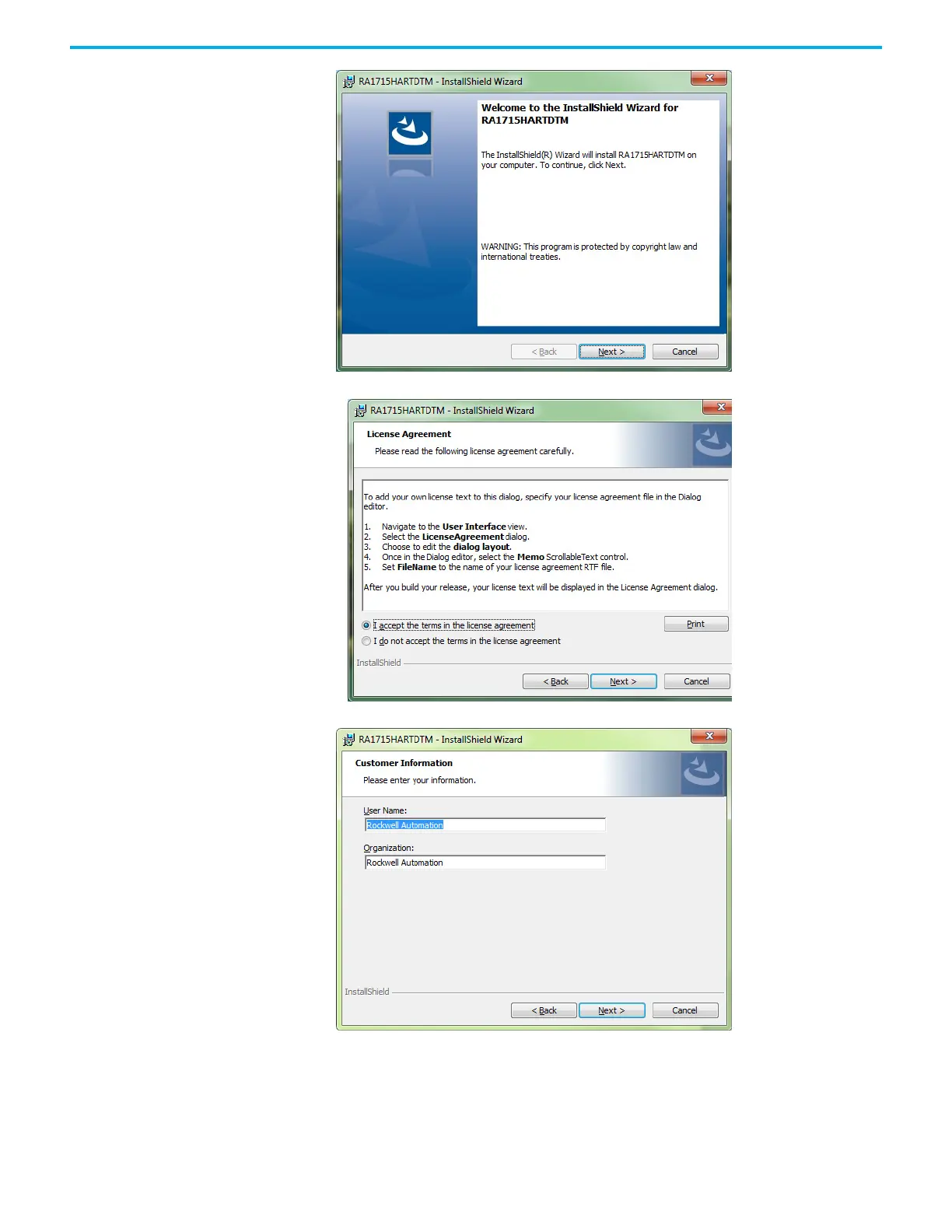

4. Accept the terms of the license agreement, click Next.

5. Fill out the customer information, click Next.

6. Change the destination folder if required, click Next.
