Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 159
Chapter 6 Configure the Redundant I/O System

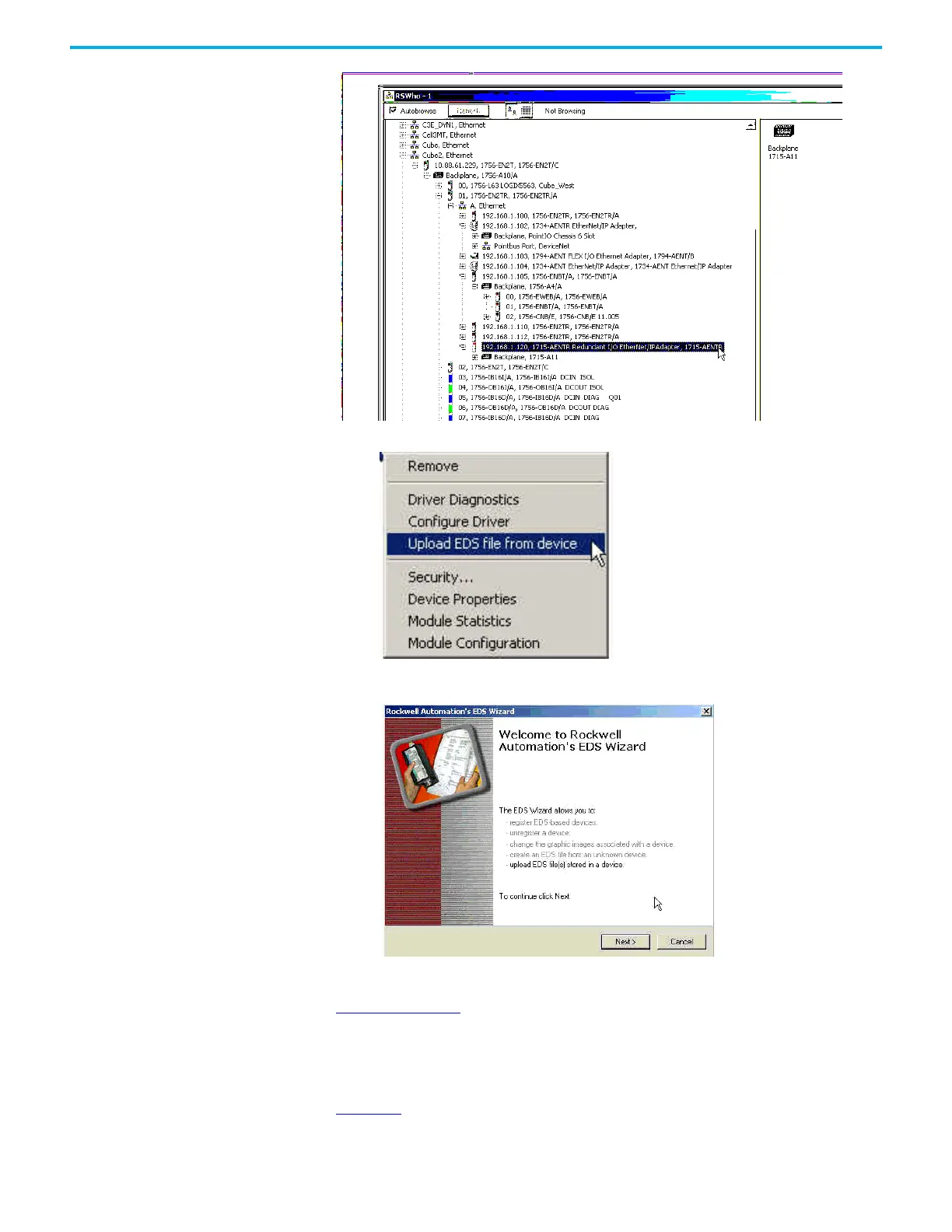

3. Choose Upload EDS file from device from the pull-down menu.
4. Follow the prompts in the Rockwell Automation EDS Wizard.
In the rare case that you must update an EDS file, you have to go to
Get Support Now
to obtain the correct files. Also note that when you download
the EDS files, you see the Chassis EDS files that you do not see if you upload
from the module. These files are necessary for chassis selection choices only in
the Logix Designer application. Keep in mind that these are virtual chassis
product numbers and not literal catalog numbers. See the example in
Figure 62
.
