Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 161
Chapter 6 Configure the Redundant I/O System

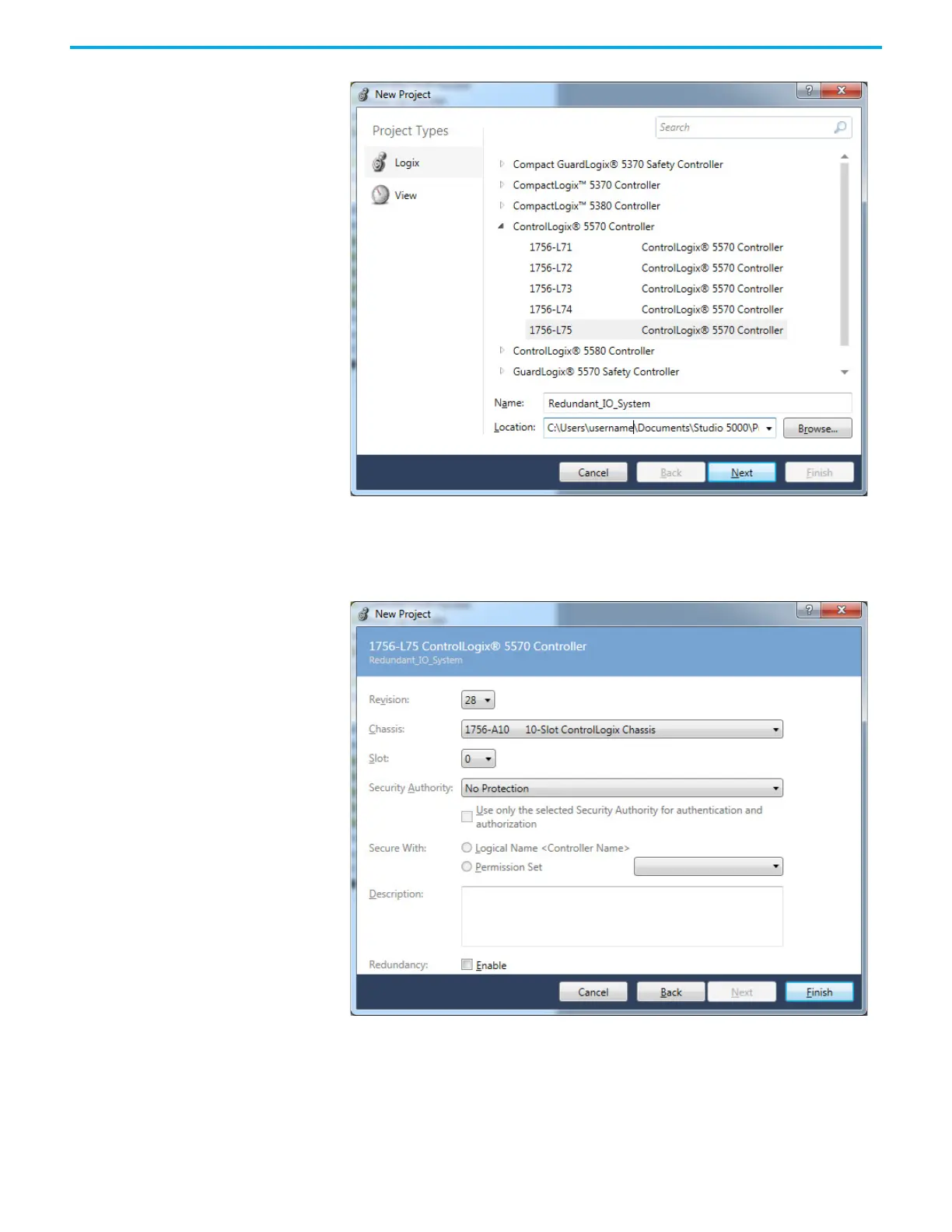

3. In the New Project dialog box, from the Type pull-down menu, choose
your ControlLogix controller from the list.
4. Enter the project filename and select a location to store the project file.
Then click the Next button.
The previous example shows the 1756-L75 controller in slot 0.
5. Choose the Revision, Chassis size, Slot number and Security Authority of
your ControlLogix controller, Then click the Finish button.
You now see the new controller in the I/O Configuration tree of the Controller
Organizer.
