176 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 6 Configure the Redundant I/O System

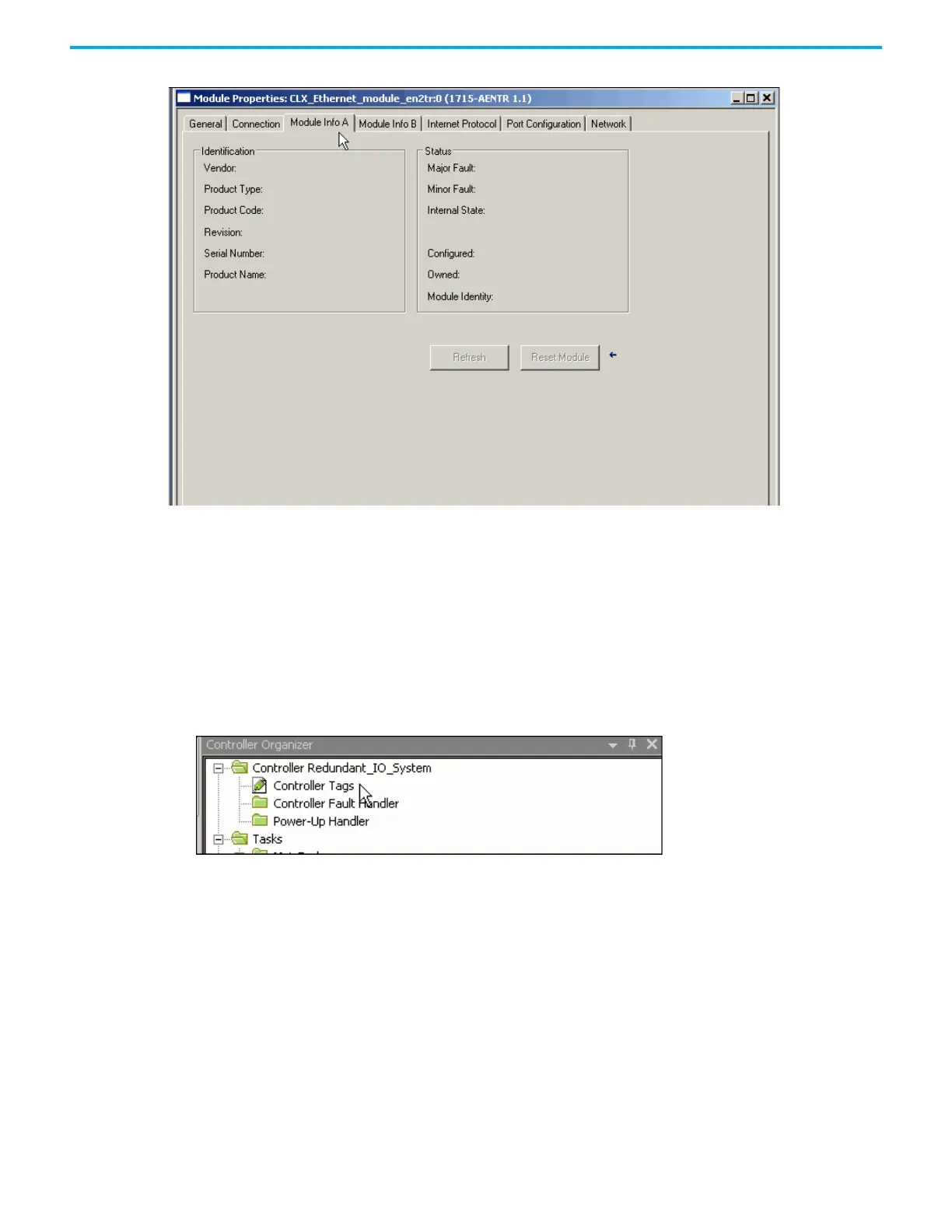

2. Click the Module Info A or Module Info B tabs.

Adapter status information displays.

Check Adapter Status via the Owner Controller Tags

To check the status of the primary and secondary adapters through the owner

controller tags, follow these steps.

1. Go online with the controller.

2. Double-click the Controller Tags folder in the Controller Organizer.

The Controller Tags window appears.

Default Chapter3
