262 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Appendix B 1715-IB16D Digital Input Module Diagnostics

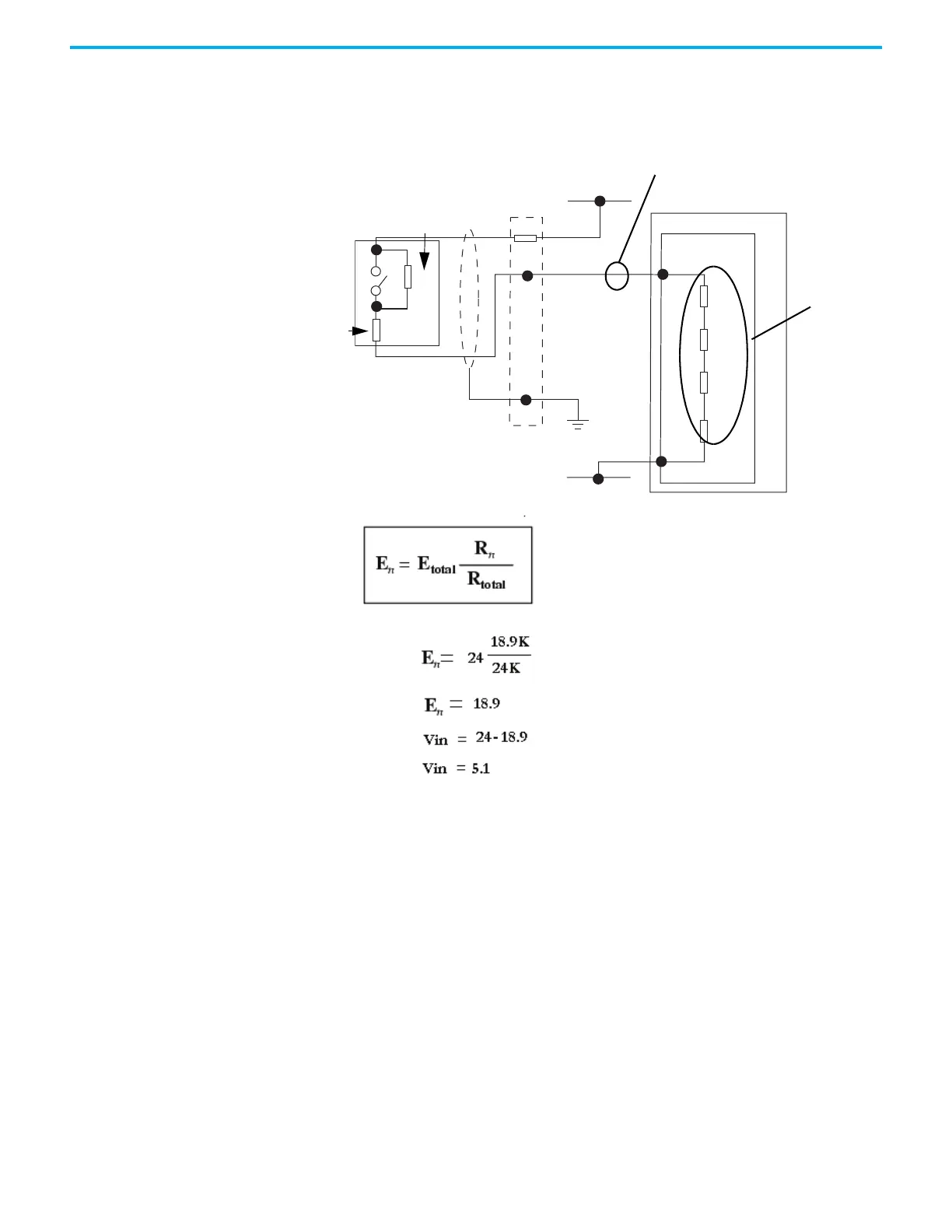

Figure 79 - Open Switch/Off Condition

If 5.1V is present, we know that the switch is in the off position. We can enter a

range into the threshold that lets 5.1V to be an off condition. We used 3.0 …6.5V

as the range. So, if the voltage drops below 3.0V, it is considered a wire off. If it

goes above 6.5V, it is considered indeterminate.

Shield

(if used)

Terminal

Blocks

20Ω

100Ω

50 mA

4.99kΩ

Termination

Assembly

+24V DC

45678

User-calculated Voltage

5.1 K

SW1

3.9 k

15 k

45680

Default Chapter3
