266 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Appendix B 1715-IB16D Digital Input Module Diagnostics

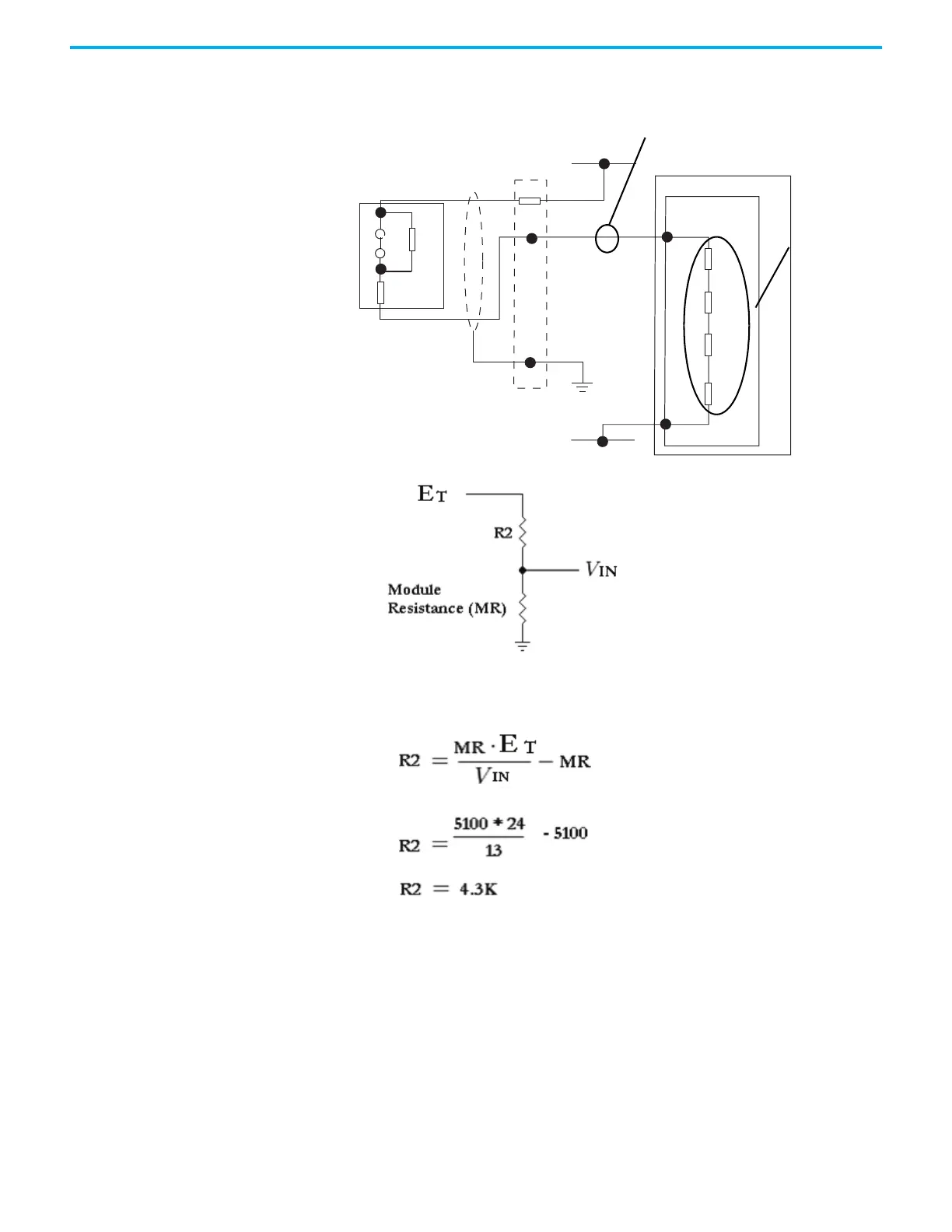

Figure 81 - On Condition

4.3 kis a close standard value, so we use 3.9 kwhich changes the voltage

slightly, but not enough to cause the range to change.

Off Condition

For an off condition, we must add a resistor to the formula. We already know

that R2 is 3.9 k

so we can use that, too.

Shield

(if used)

Terminal

Blocks

20Ω

100Ω

50 mA

4.99kΩ

Termination

Assembly

+24V DC

45678

5.1 k

Module

Resistance

SW1

45682

45683
