SmartGuard™ 600 Controllers Logic Integration Chapter 4

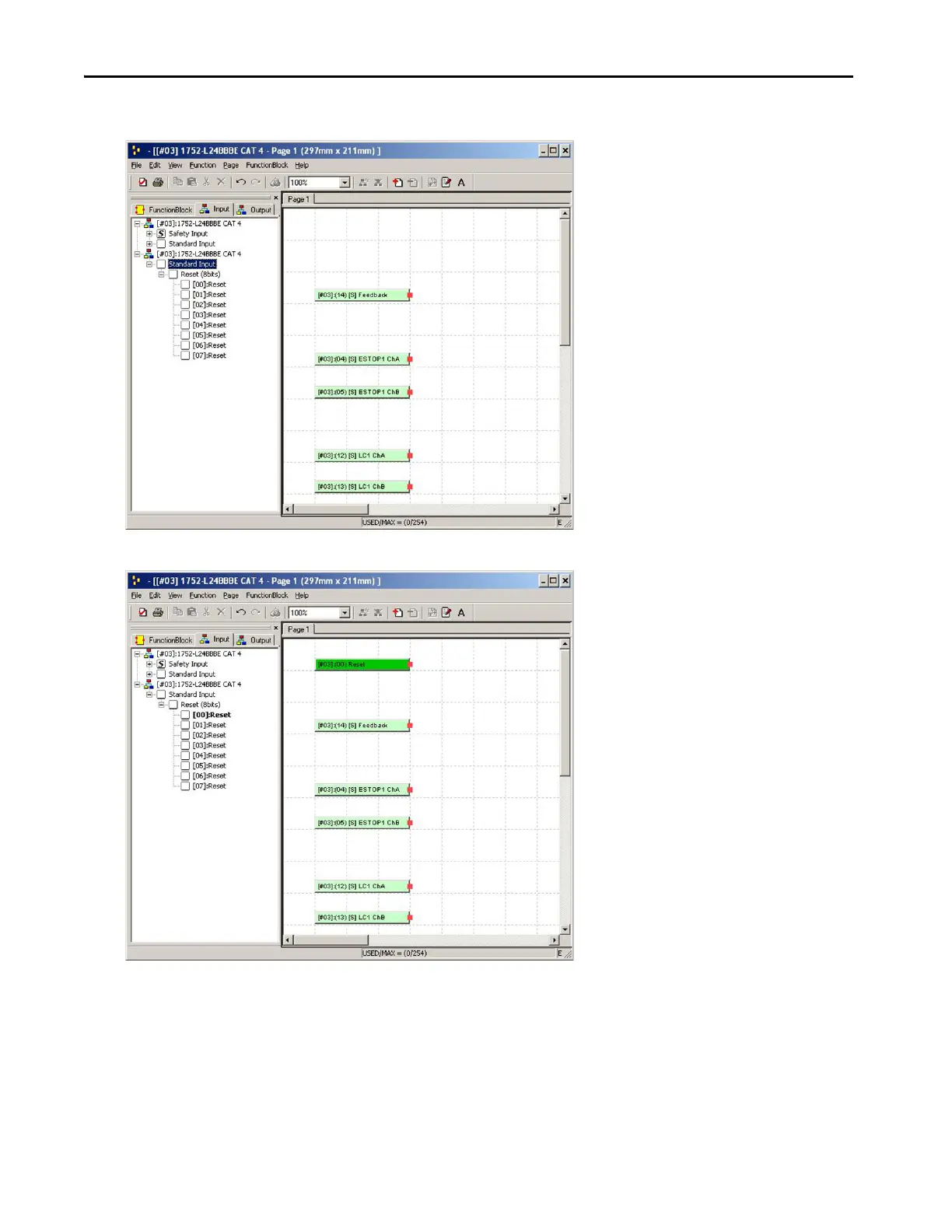

6. Expand the second instance of your safety controller to display any standard reset inputs needed for your application.
For this example, eight standard reset inputs are listed.
7. Select and drag any standard reset inputs required for your initial zone control onto the Logic Editor, Page 1.
Reset bit 0 is used in this simple zone control example.
