Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 133
SmartGuard™ 600 Controllers Logic Integration Chapter 4

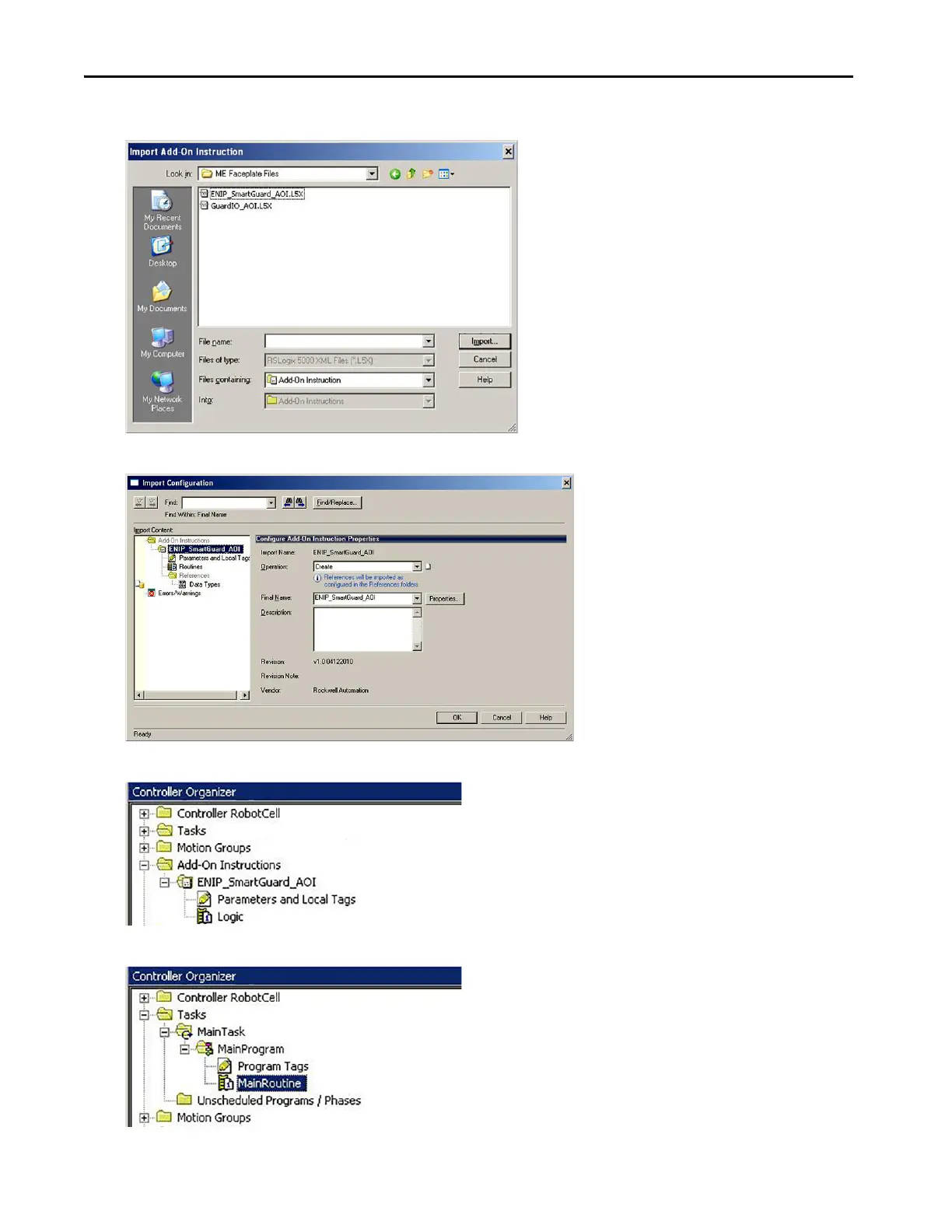

3. Select the Add-On Instruction file named ENIP_SmartGuard_AOI.L5X, and click Import.
4. Click OK on the Import Configuration dialog box to execute the import.
The ENIP_SmartGuard_AOI appears in the Add-On Instruction folder of your Logix controller.
5. Double-click your Main Routine or the routine in which you want to use the faceplate logic.
