Chapter 4 SmartGuard™ 600 Controllers Logic Integration

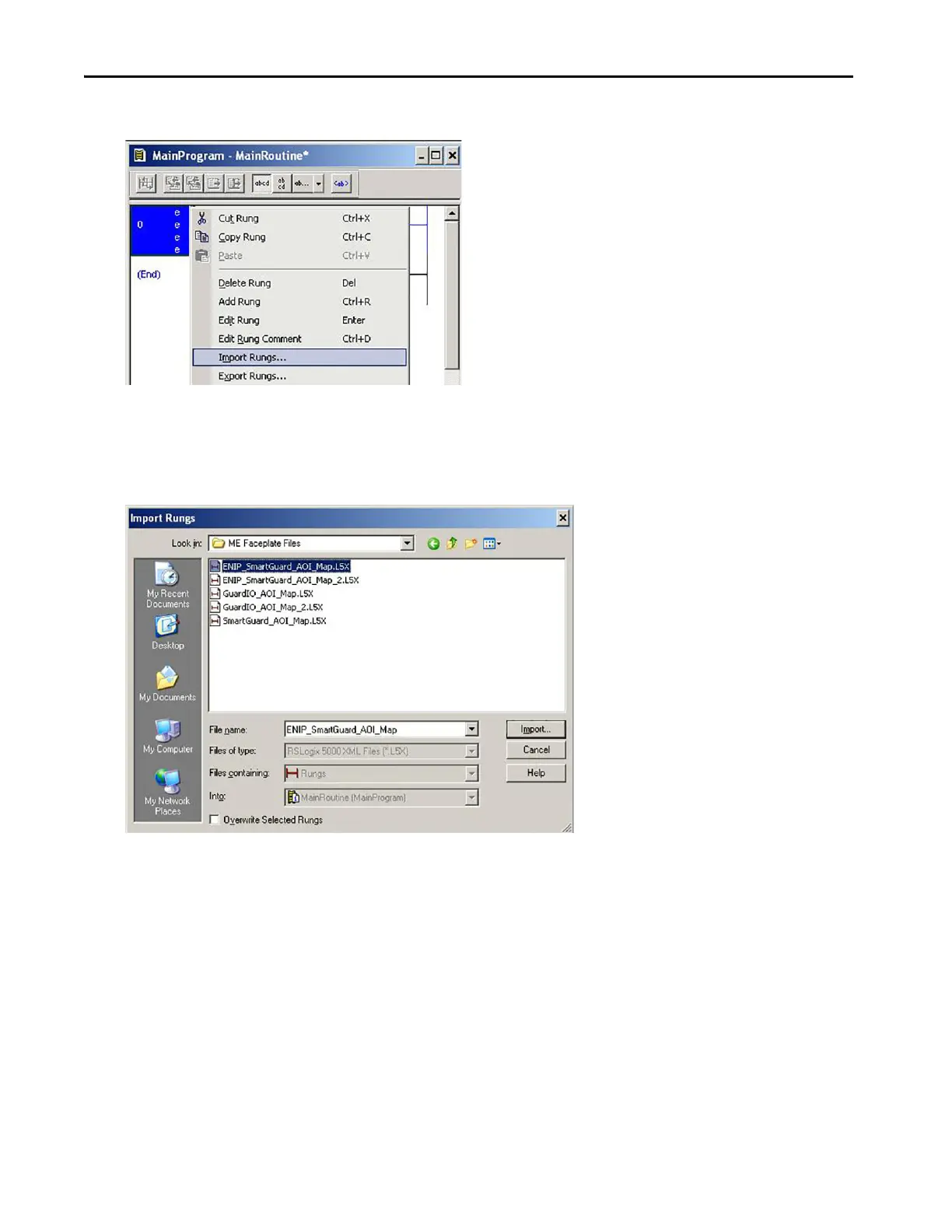

6. Right-click a rung insertion location and choose Import Rungs.
7. Browse to the ME Faceplate Files folder within the Guard I/O and SmartGuard Faceplate Files toolkit directory.
If the toolkit has been loaded onto your personal computer, the path is C:\Program Files\
RA_Simplification\SafetyGuardLogix\Files\Guard IO an
d SmartGuard Faceplate Files\ME Faceplate Files.
8. Select the Add-On Instruction file named ENIP_SmartGuard_AOI_Map.L5X, and click Import.
