SmartGuard™ 600 Controllers Logic Integration Chapter 4

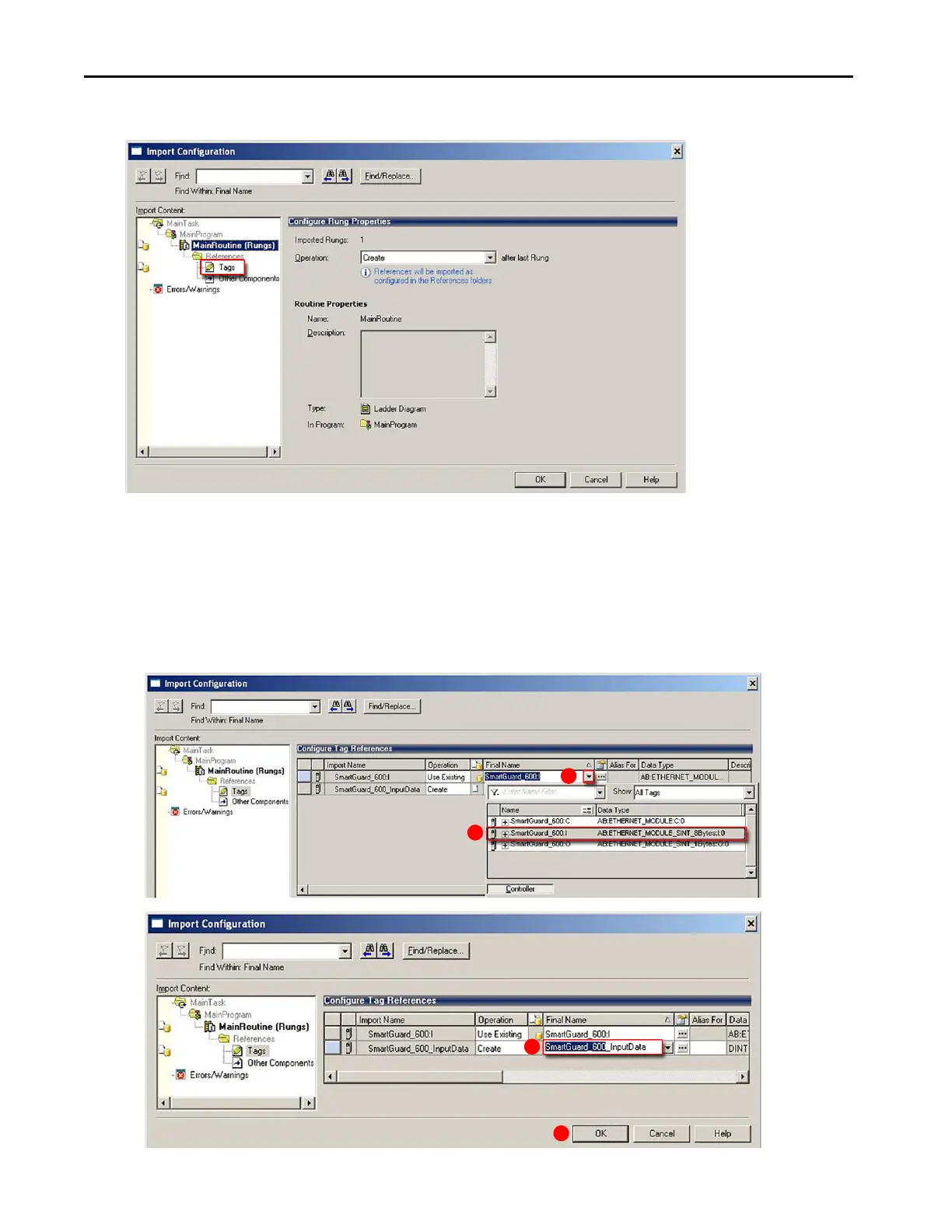

9. Select Tags from the Import Content organizer on the Import Configuration dialog box.
10. If you did not use the default SmartGuard 600 name for your SmartGuard Ethernet module, then rename both the
SmartGuard_600:I tag and the SmartGuard_600_InputData tag; otherwise skip this step.
a. Click the pull-down arrow next to the SmartGuard_600:I input tag in the Final Name column (A).
b. In the pull-down menu, browse to your SmartGuard 600 Et
hernet module input tag and select it (B).
c. Select the SmartGuard_600_InputData tag in the Final Name column and type over the existing name with the
na
me of your SmartGuard 600 Ethernet module (C).
d. Click OK to complete the rung import (D).
