152 Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016
Chapter 5 FactoryTalk® View ME Software Integration

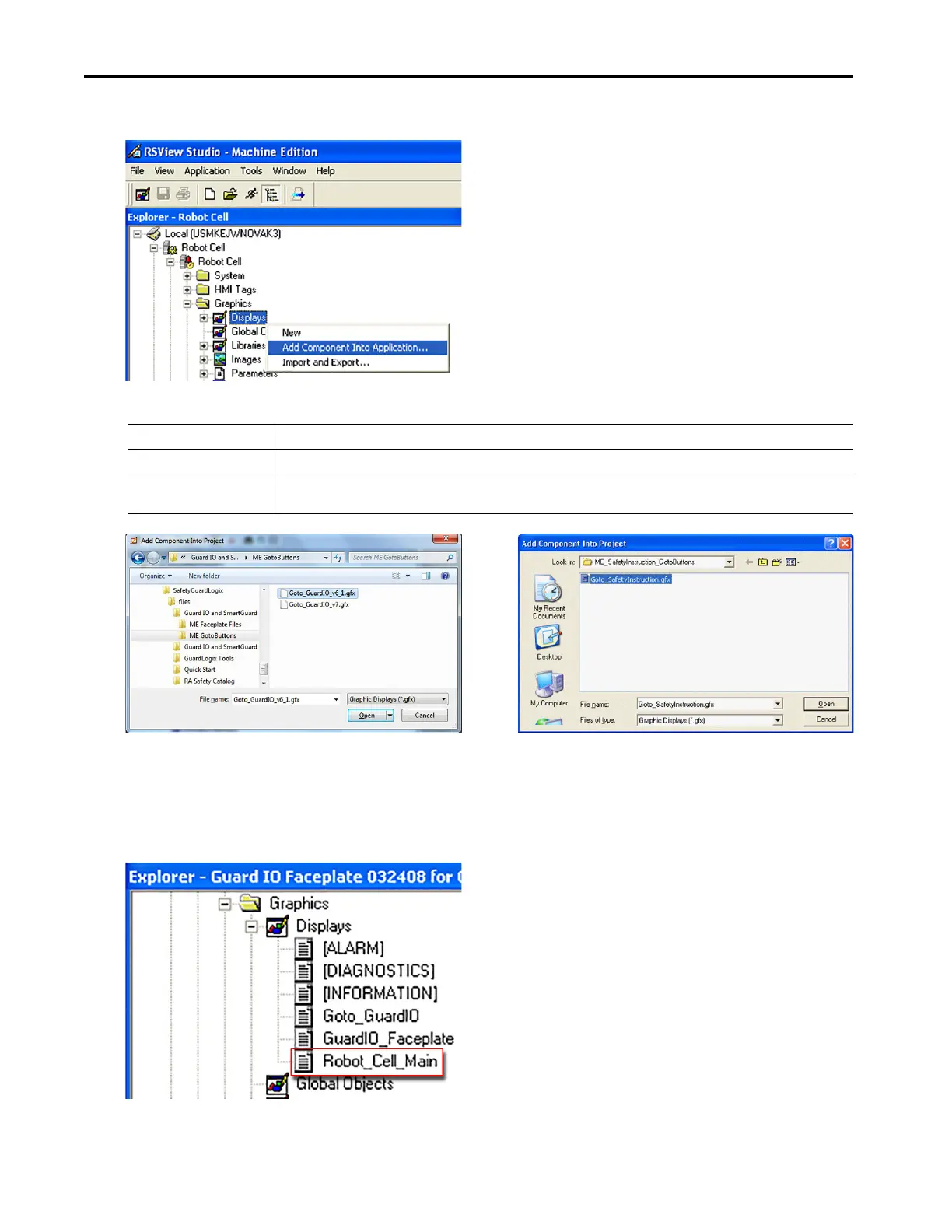

4. Add the Goto Displays by right-clicking Display and choosing Add Component into Application.
5. Browse to the appropriate faceplate files on the toolkit DVD and open the desired folder:
6. Select the desired ‘.gfx’ file and click Open.
The selected display appears under Displays in your application.
7. Create a new Display or open your existing system display.
This example shows a new display named Robot_Cell_Main.
For these Browse to
Guard I/O Goto Button Display C:\Program Files\RA_Simplification\SafetyGuardLogix\Files\ Guard I/O and SmartGuard Faceplate File\ME_GotoButtons
Safety Instruction Goto Button
Display
C:\Program Files\RA_Simplification\SafetyGuardLogix\Files\Safety Instruction Faceplate Files\ME_SafetyInstruction_GotoButtons
To Next Page
