Rockwell Automation Publication IASIMP-QS005H-EN-P - April 2016 75
GuardLogix® Controllers Logic Integration Chapter 3
8. Assign the remaining required tags you defined from the Guard I/O Module Tags table on page 71.

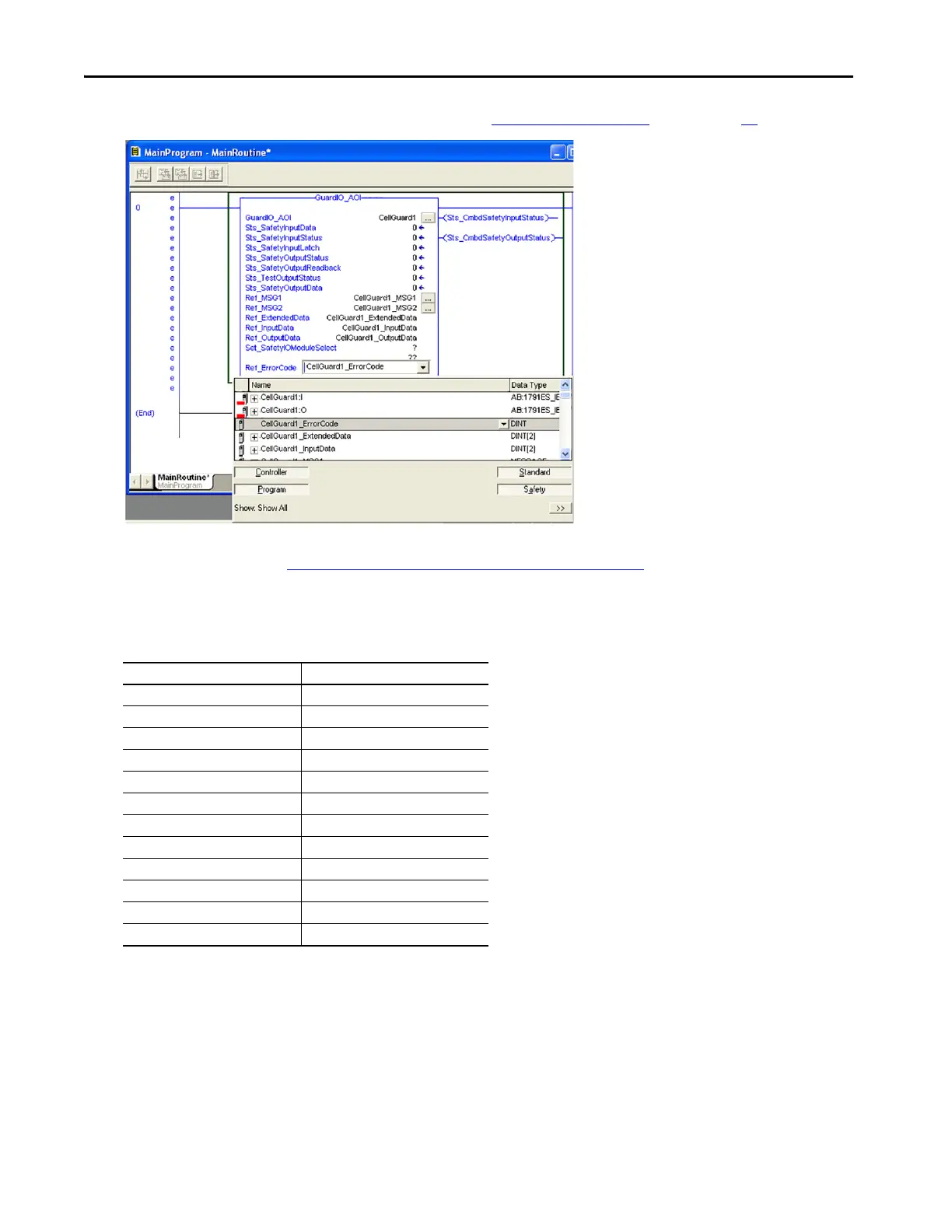

9. Double-click each Ref_Tag and click the pull-down arrow to browse to and select the appropriate controller tags,
which you created in the Create Controller Tags for Digital Guard I/O Faceplate
section of this chapter.
10. Double-click the Set_SafetyIOModuleSelect field and type in the value that matches your module catalog number,
as shown in this table.
Table 8 - Set Safety I/O Module Type
Set_SafetyIOModuleSelect Value Guard I/O Module Catalog Number
1 1791DS-IB8XOB8
2 1791DS-IB12
3 1791DS-IB4XOW4
4 1791DS-IB8XOBV4
5 1791DS-IB16
6 1732DS-IB8XOBV4
7 1732DS-IB8
8 1791ES-IB8XOBV4
9 1791ES-IB16
10 1734-OB8S
11 1734-IB8S
12 1752-L24BBB
