GuardLogix® Controllers Logic Integration Chapter 3

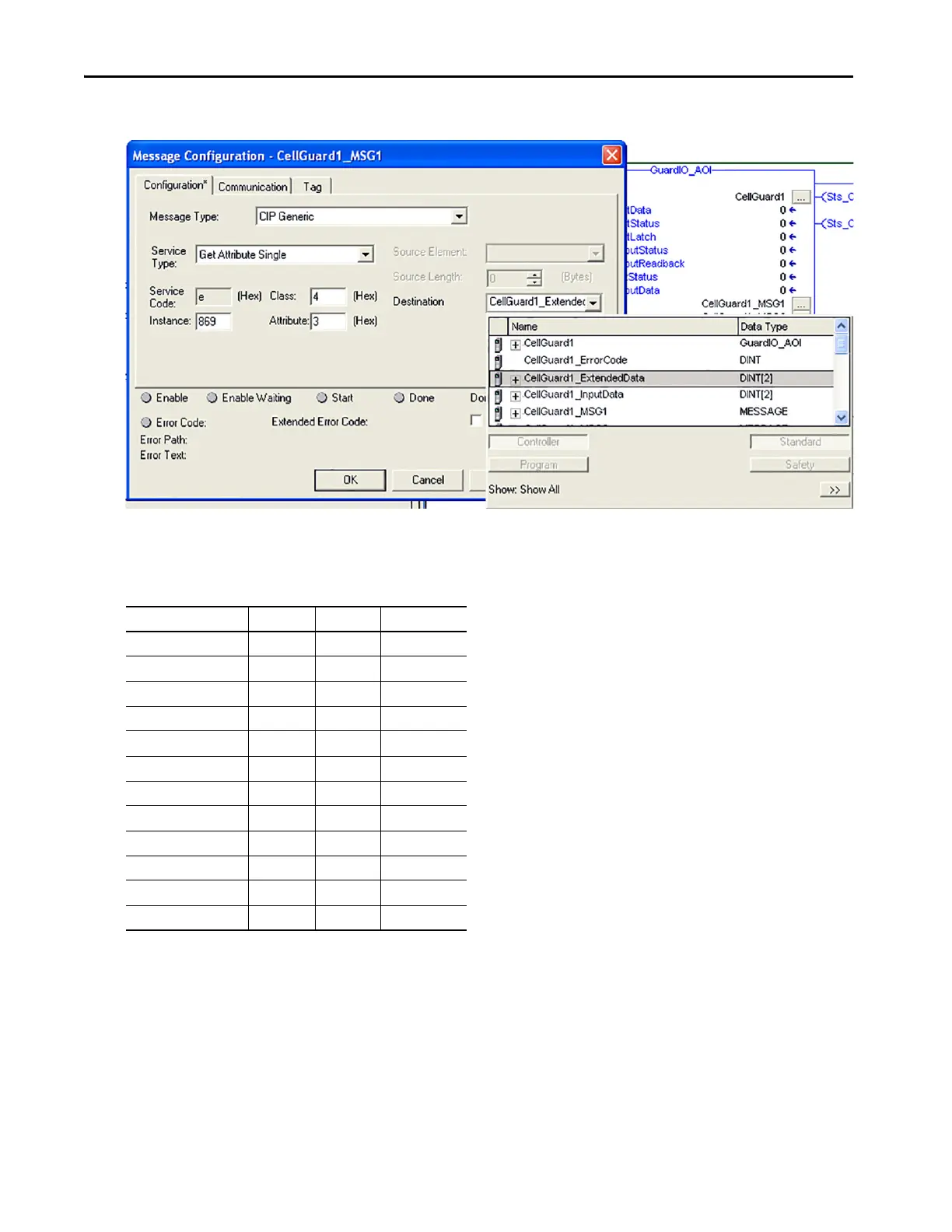

2. Set the Destination as the ExtendedData tag you created for your I/O module.
3. Configure the Service Type as Get Attribute Single, which results in a Service Code of ‘e’.
4. Fill in the Class, Instance, and Attribute fields using this table.
Table 9 - Guard I/O Module Configuration Data
Guard I/O Module Class Instance Attribute
1791DS-IB8XOB8 4 803 3
1791DS-IB12 4 786 3
1791DS-IB4XOW4 4 819 3
1791DS-IB8XOBV4 4 884 3
1791DS-IB16 4 869 3
1732DS-IB8XOBV4 4 884 3
1732DS-IB8 4 868 3
1791ES-IB8XOBV4 4 884 3
1791ES-IB16 4 869 3
1734-OB8S 4 1028 3
1734-IB8S 4 868 3
1752-L24BBB 39 1 6e
