GuardLogix® Controllers Logic Integration Chapter 3

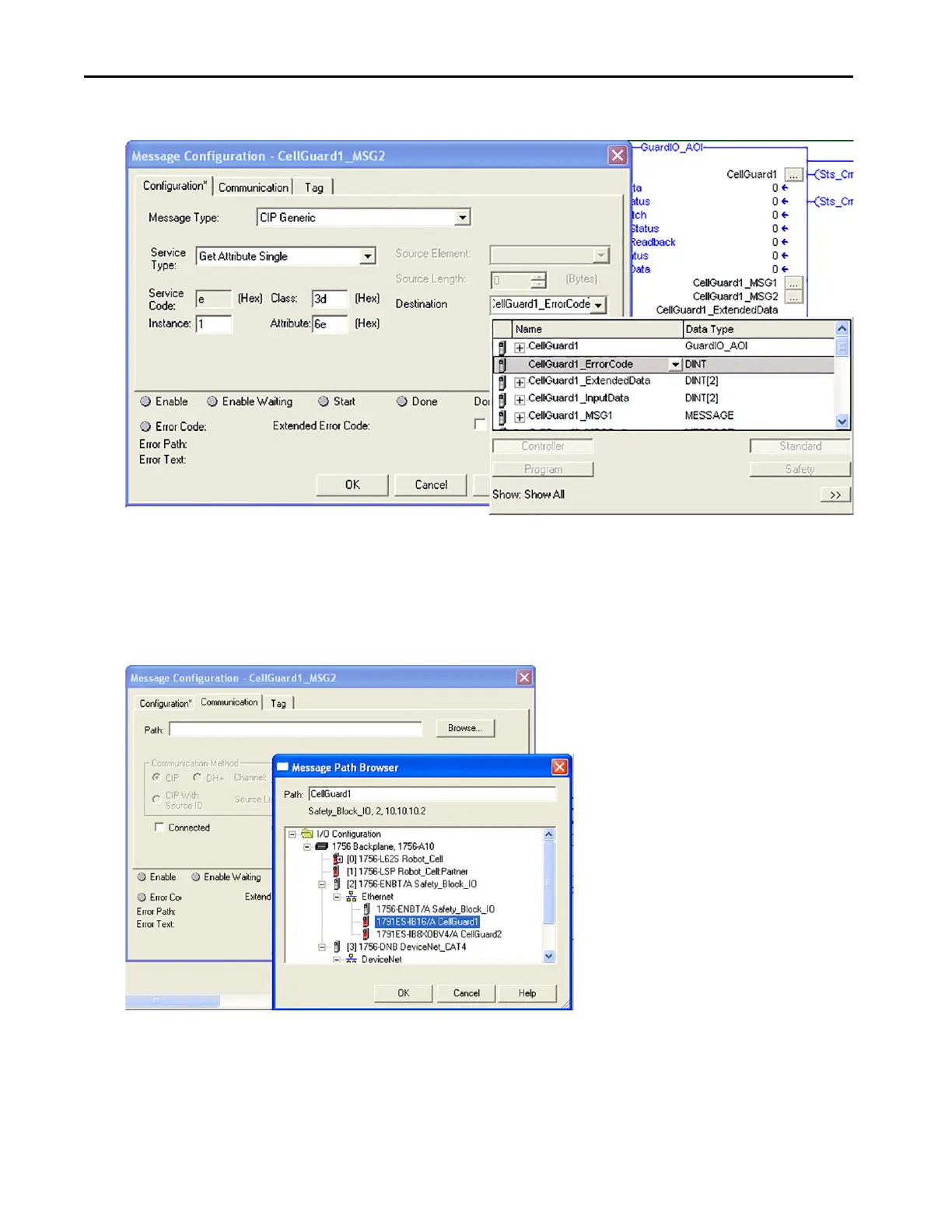

10. Set the Destination as the ErrorCode tag you created for your I/O module.
11. Configure the Service Type as Get Attribute Single, which results in a Service Code of ‘e’.
12. Fill in the Class, Instance, and Attribute fields to match what is shown in the above example.
Logic within the GuardIO_AOI modifies the Class, Instance, and Attribute, depending upon the module selected
and which Guard I/O point faults.
13. To access Message communication, select the Communication tab on the Message Configuration dialog box.
14. Set the Message Path by clicking Browse and choosing the intended Guard I/O module from the I/O
Configuration tree.
15. Click OK to accept the message path.
16. Click OK on the Message Configuration dialog box to accept the MSG2 configuration.
To Next Page
