GuardLogix® Controllers Logic Integration Chapter 3
15. Select the safety tag name field and click the pull-down arrow.
16. Locate the associated ModuleName_ChxHMITachReset safety tag and double click to place in the safety tag
name field.
For this example, E_IE4S_Ch2HMITachReset safety tag was selected.
17. Repeat steps 1…16 for all of the tachometer analog channels of each module.

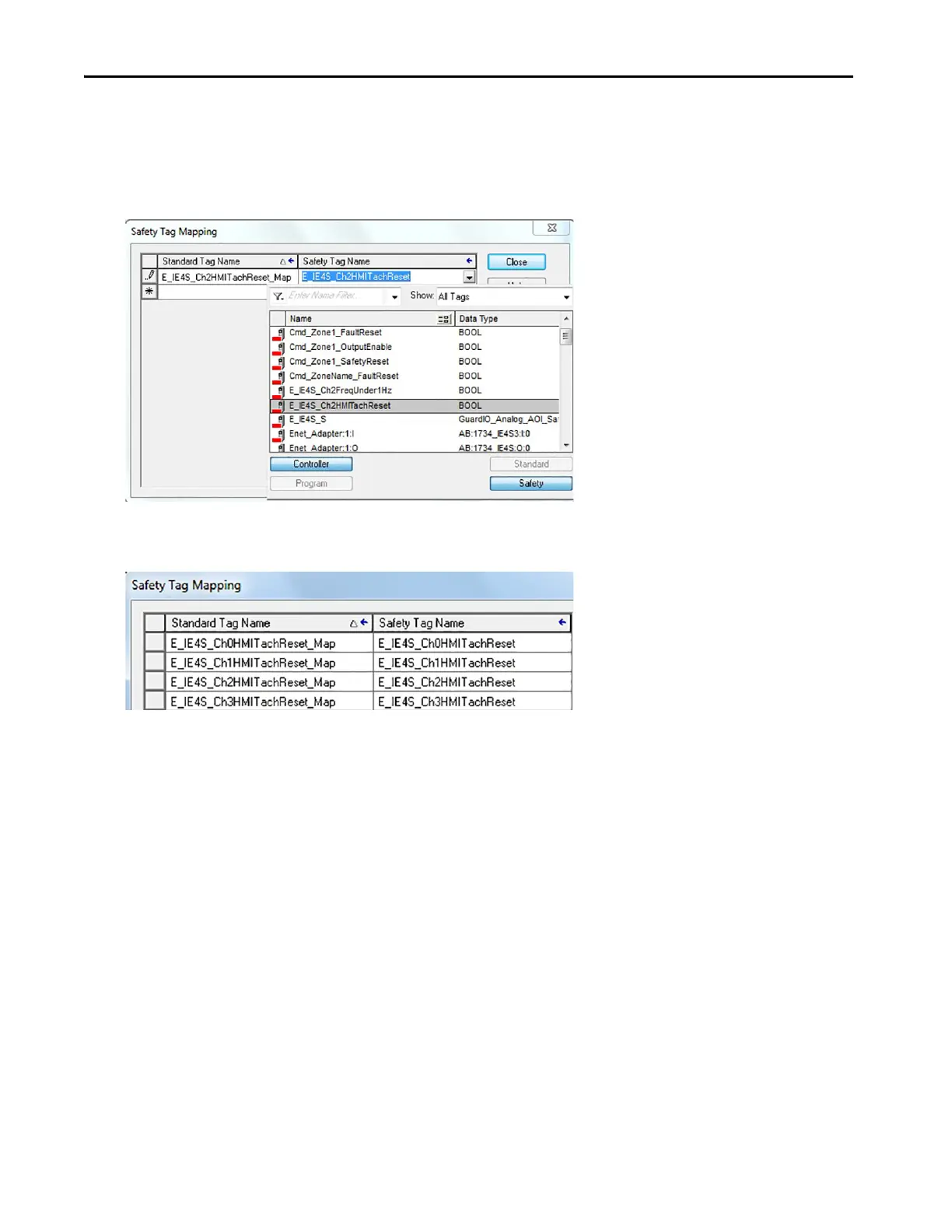

The following is an example of mapping four tachometer
channels from an analog module named E_IE4S.
