Chapter 3 GuardLogix® Controllers Logic Integration
The tachometer reset mapping rungs are now complete and your Analog GuardIO_AOI and mapping rungs
should look similar to the following rungs.

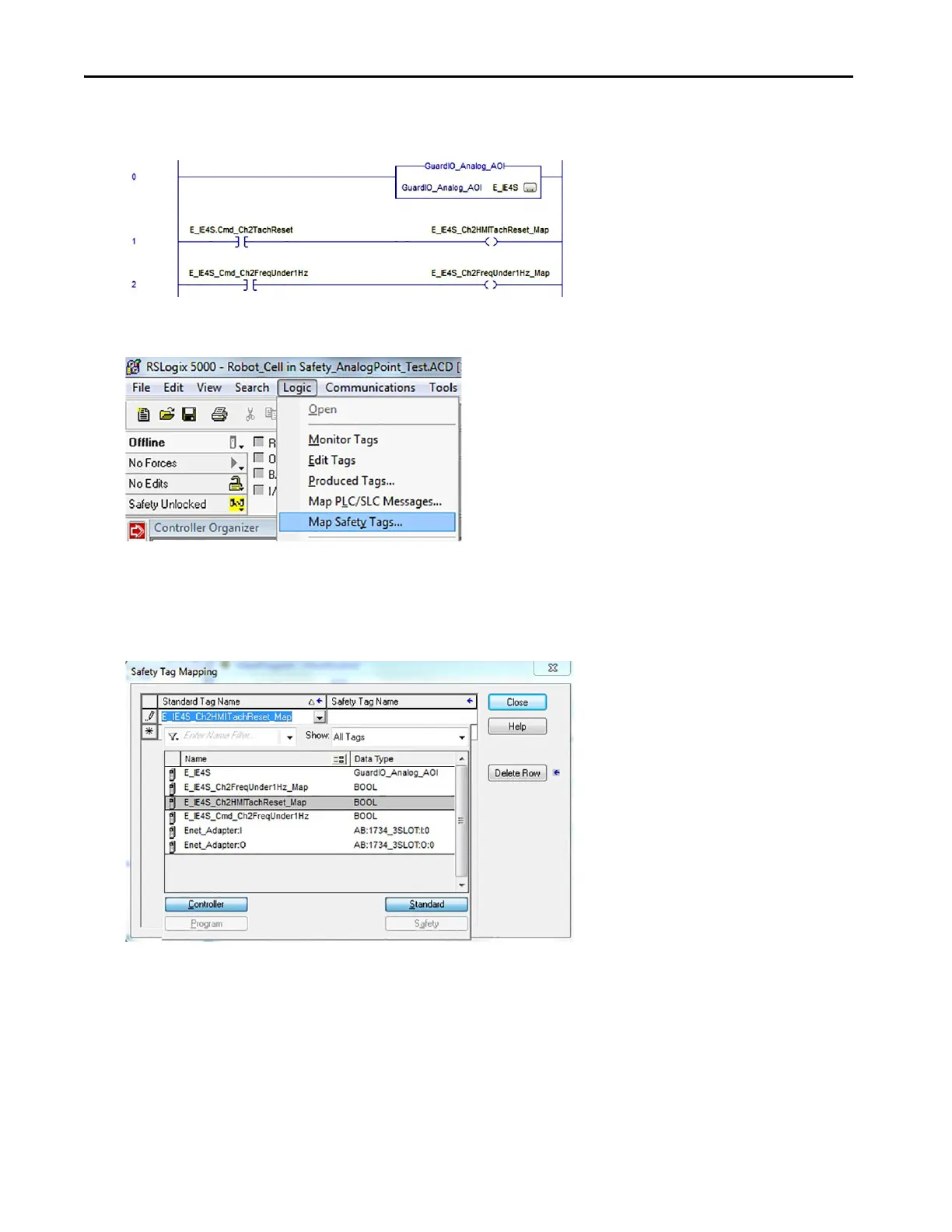

12. Choose Logic>Map Safety Tags to map the associated standard controller tachometer reset tags to the safety
ta
chometer reset tags.
13. Select the standard tag name field and click the pull-down arrow.
14.
L
ocate the ModuleName_ChxHMITachReset_Map output tag of the first rung you imported in the previous
steps and double click to place in the standard tag name field.
For this example, E_IE4D_Ch2HMITachReset_Map was selected.
