Chapter 3 GuardLogix® Controllers Logic Integration

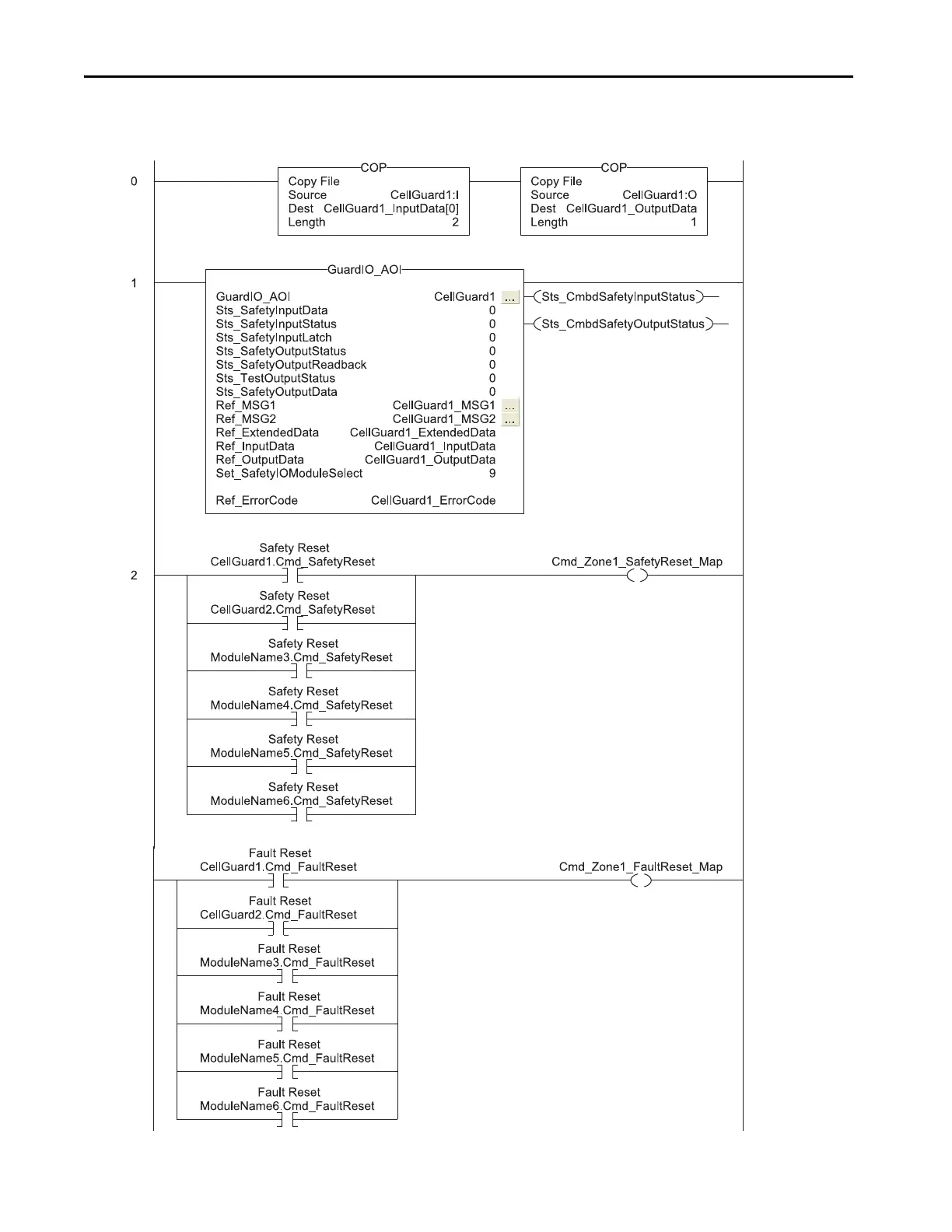

9. After the import is complete, the imported safety reset and fault reset logic rungs should look similar to rungs 2
and 3 in the example shown here.
