GuardLogix® Controllers Logic Integration Chapter 3

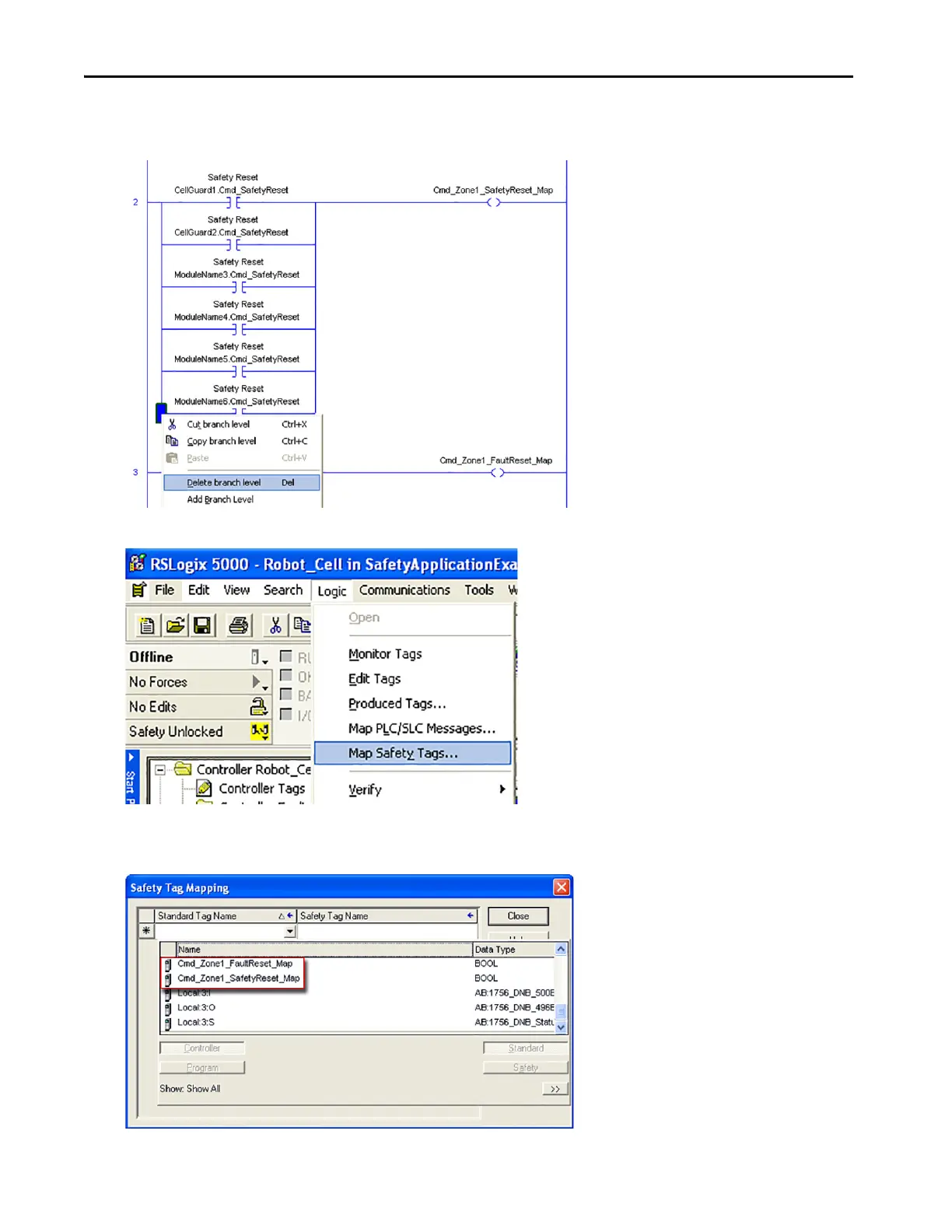

10. Delete all Safety Reset and Fault Reset Rung instruction branches that are not assigned GuardIO_AOI tags, by
right-clicking the branch and choosing Delete branch level.
11. Choose Logic>Map Safety Tags to map the associated standard controller tags to the safety tags.
12. Select the standard name field and click the pull-down arrow.
13. Select both the Cmd_ZoneName_FaultReset_Map and Cmd_ZoneName_SafetyReset_Map tags.
