5–25Part Replacement Procedures
Publication 1336 IMPACT-6.8 – November, 2002
Replacing a Thermistor
The Thermistor is located at the top of the Main Heat Sink in the
Inverter Assembly.

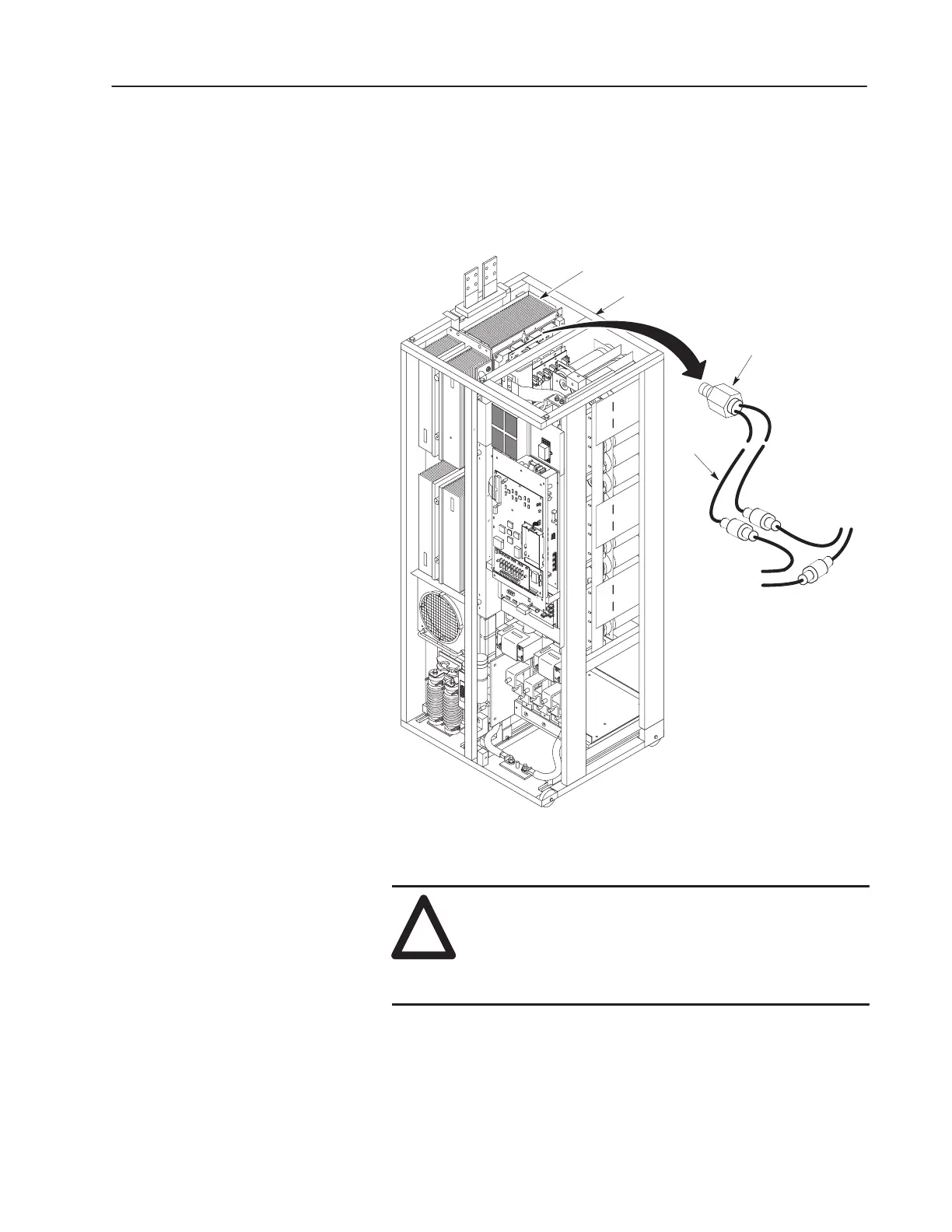

Figure 5.13
Thermistor
Thermistor
To Control
Board J1
Inverter Bay w/o Cabinet
AB1095
Main Heat Sink
To Thermostat
(SCR Heat Sink)
Harness
Removal
!
ATTENTION: Wear a wrist-type grounding strap
when servicing 1336 IMPACT drives. Failure to
protect drive components against ESD may damage
drive components. Refer to Electrostatic Discharge
Precautions in Chapter 3, Access Procedures.
To Next Page
