1–10 Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.8 – November, 2002

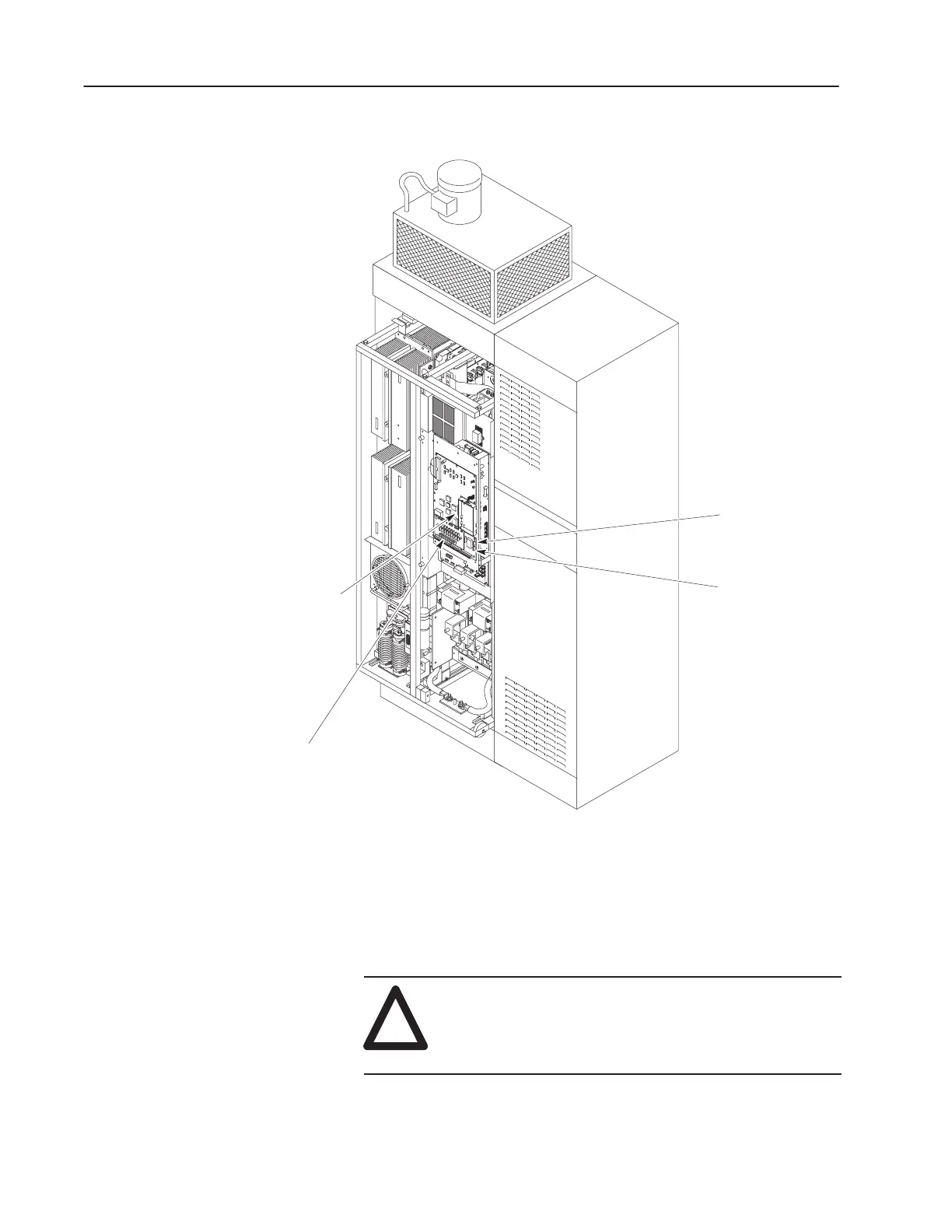

Figure 1.6
SCANport Locations
SCANport 2
(Remote HIM or PMT)
SCANport 0
(L Option)
SCANport 1
(Drive Mounted HIM)
SCANport 6
(Gateway)
Removing the HIM
For handheld operation, you can remove the module and place it up
to 10 meters (33 feet) from the 1336 IMPACT drive. (You do need a
cable to do this.)
!
ATTENTION: Some voltages present behind the
drive front cover are at incoming line potential. To
avoid an electric shock hazard, use extreme caution
when removing/replacing the HIM.
