5–38 Part Replacement Procedures
Publication 1336 IMPACT-6.8 – November, 2002

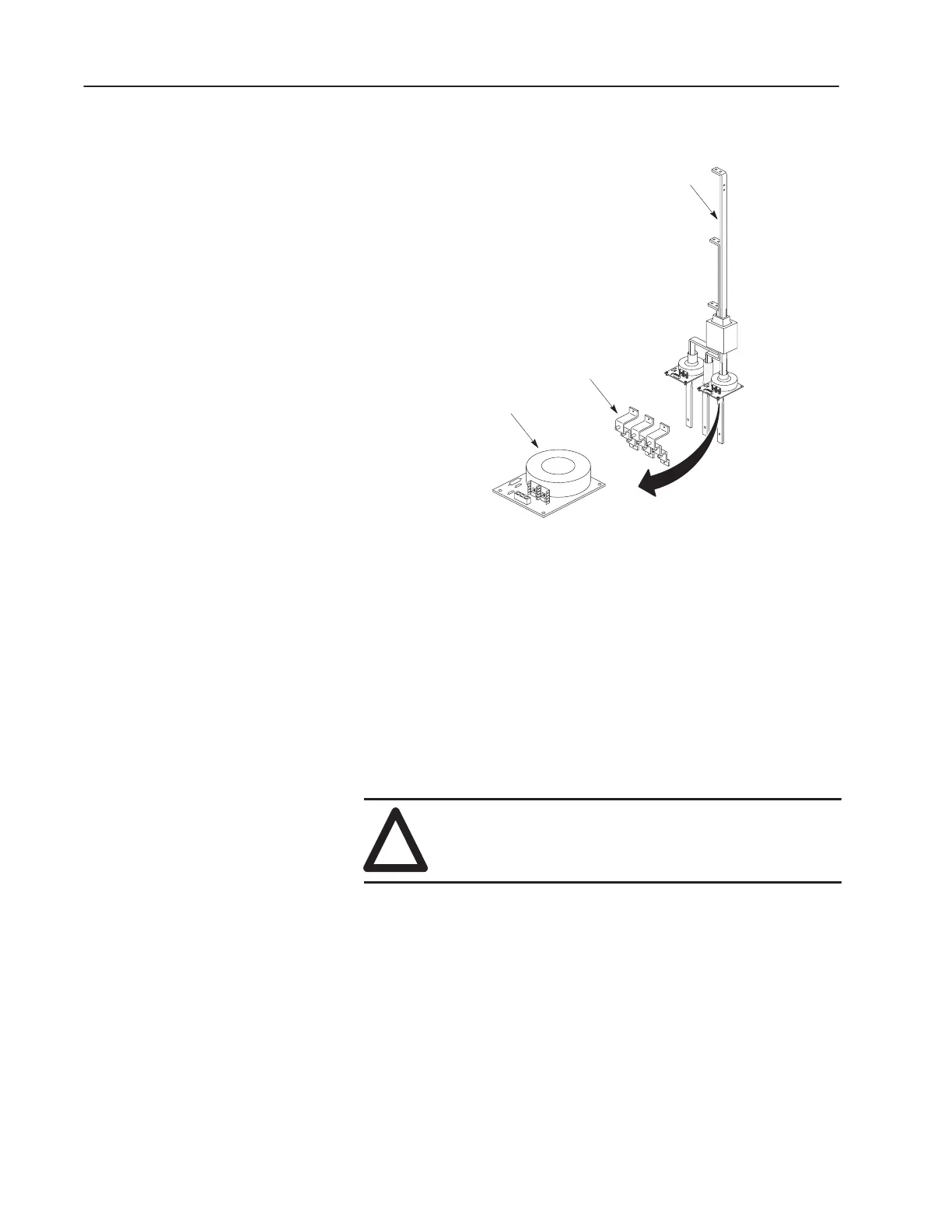

Figure 5.20
Current Transducers
Terminal Strips
Motor
Buses
Current
Transducer
Remove the Current Transducer:
1. Remove the Terminal Strip (stairstep shaped bar) from each
Motor Bus.
2. Tilt the Motor Buses out at the bottom. (It is not necessary to
remove the flex buses from the top of the Motor Buses.)
3. Slide the Current Transducer off the bottom of the Motor Bus.
Installation
Install the Current Transducers in reverse order of removal. Refer to
Fastener Torque Specifications in Chapter 3, Access Procedures.
!
ATTENTION: Replace all guards before applying
power to the drive. Failure to replace guards may result
in death or serious injury.
