1–9Control Logic Wiring and Adapters
Publication 1336 IMPACT-6.8 – November, 2002
Description
When the drive-mounted HIM is supplied, it will be connected as
SCANport 1 (refer to Figure 1.5). The HIM can be divided into two
sections: Display Panel and Control Panel. The Display Panel
provides a means of programming the drive and viewing the various
operating parameters. The Control Panel allows different drive
functions to be controlled. For HIM operation, refer to the 1336
IMPACT User Manual.
Important: The operation of HIM functions depends upon drive
parameter settings. Default parameter values allow full
HIM functionality.

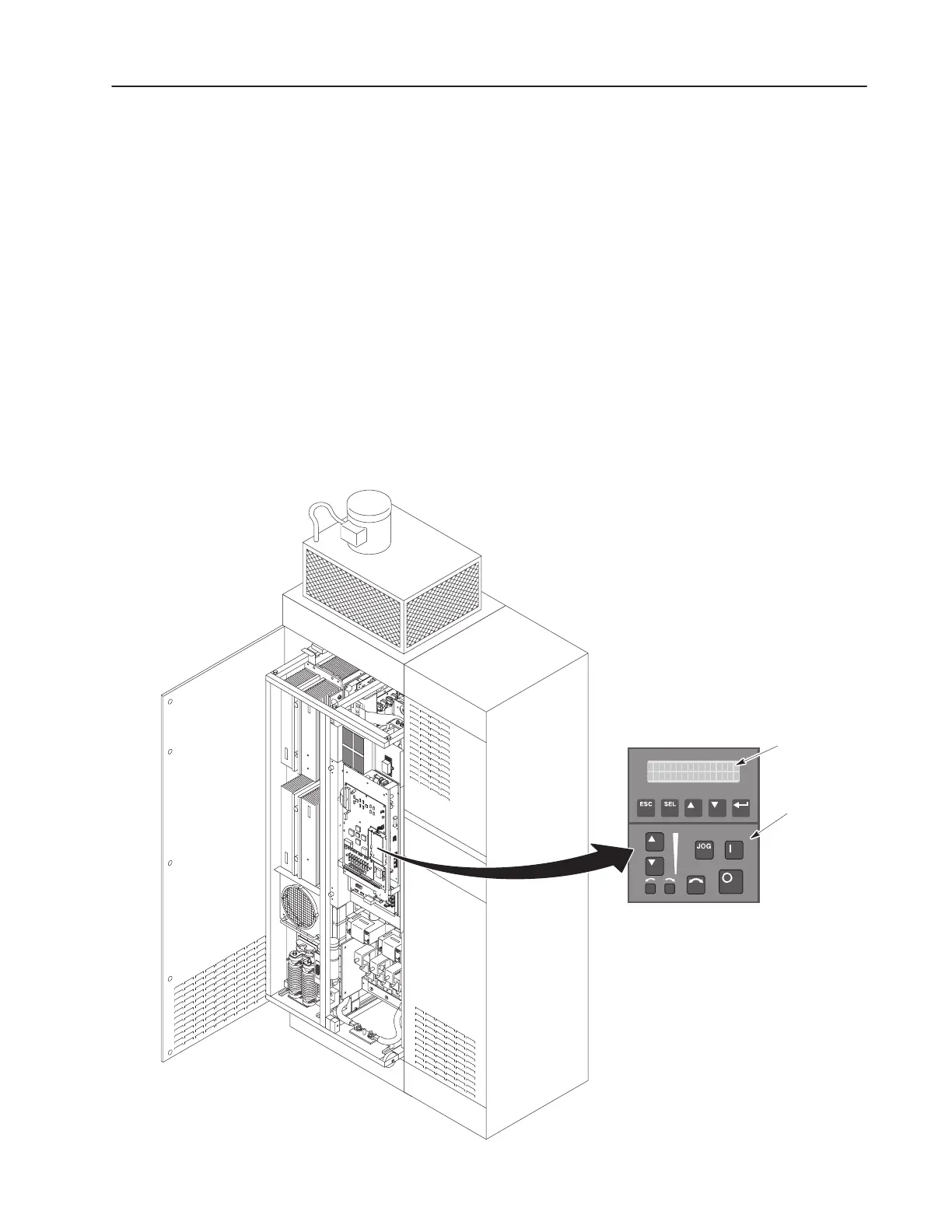

Figure 1.5
Human Interface Module – Inverter Mounted
Typical Human Interface
Module (HIM)
Control Panel
Display Panel
Human Interface Module
(HIM)
