5–35Part Replacement Procedures
Publication 1336 IMPACT-6.8 – November, 2002
Part Replacement Procedures
Replacing Bus Fuses
The Bus Fuses are located on the Transitional Bus Bar Assembly.
If just one of the three Bus Fuses fails, suspect a failure in the
associated set of Bus Capacitors. Refer to Replacing Bus Capacitors
in this chapter.
Removal

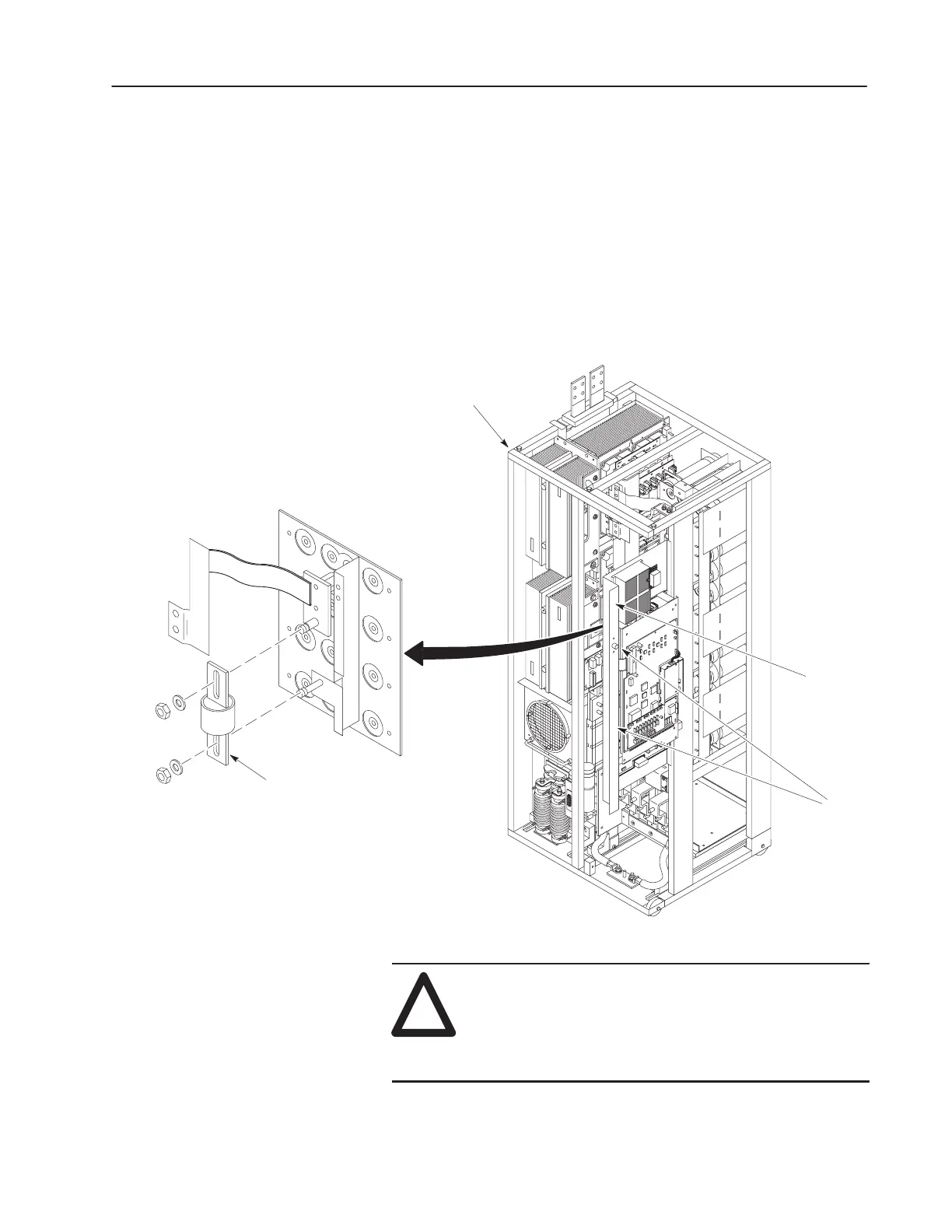

Figure 5.19
Bus Fuse
Bus Fuse
1/4 Turn
Latches
Inverter Bay w/o Cabinet
Precharge
Board
Mounting
Frame
!
ATTENTION: Wear a wrist-type grounding strap
when servicing 1336 IMPACT drives. Failure to
protect drive components against ESD may damage
drive components. Refer to Electrostatic Discharge
Precautions at the beginning of this chapter.
To Next Page
